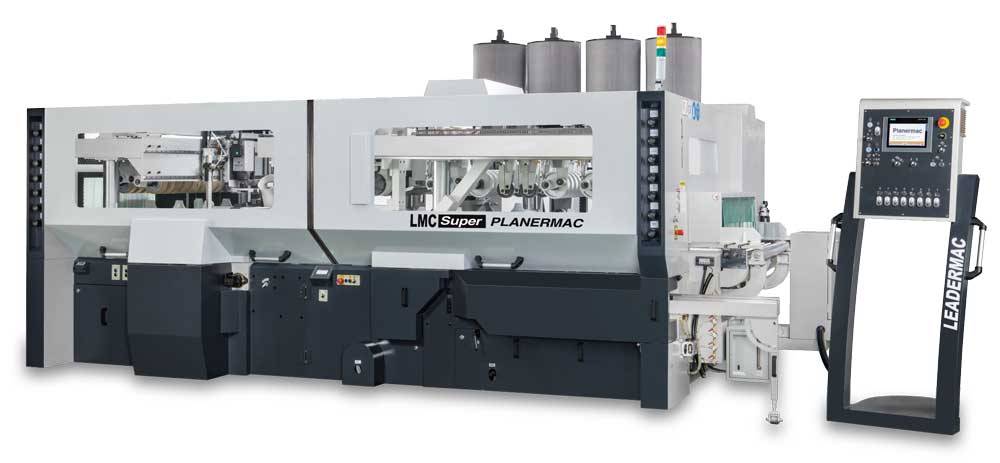

LeaderMac-PlanerMac-Series

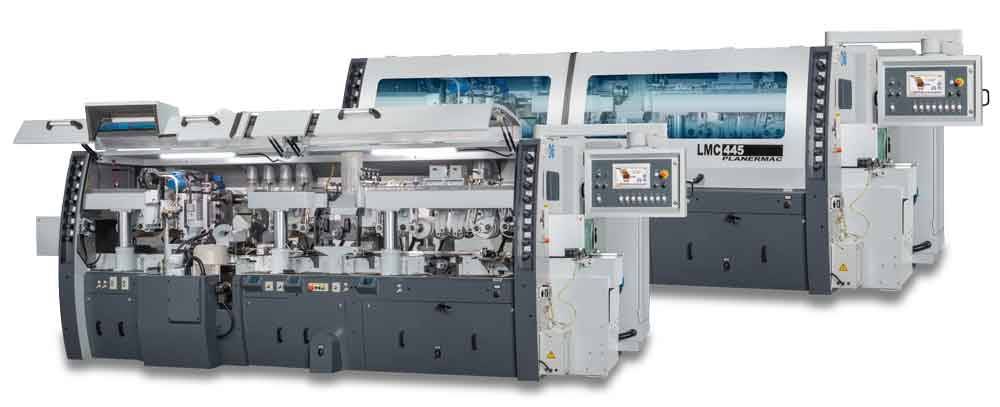

Extra-Ruggedly

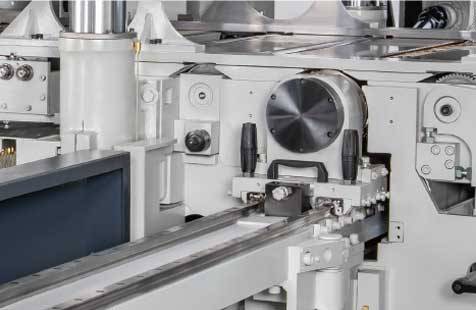

Oversized-Outboard-Bearing

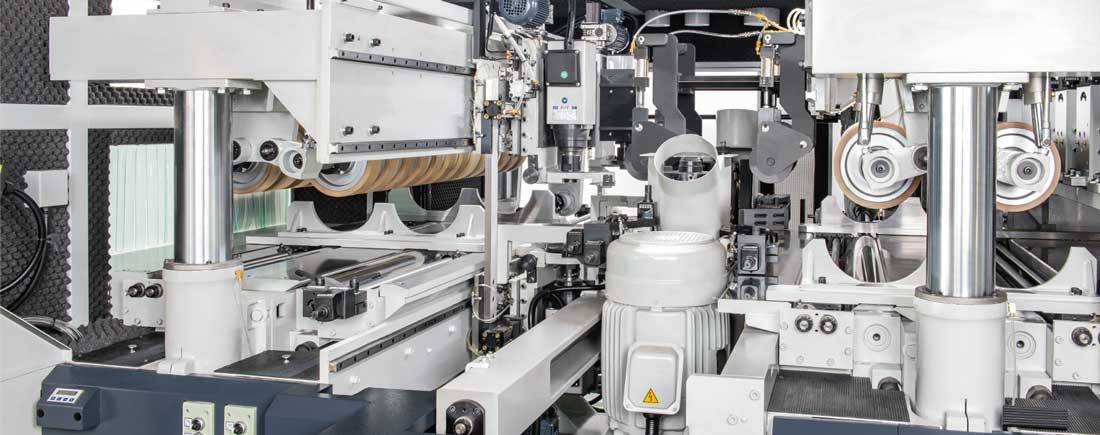

Floating-Vertical-Spindle

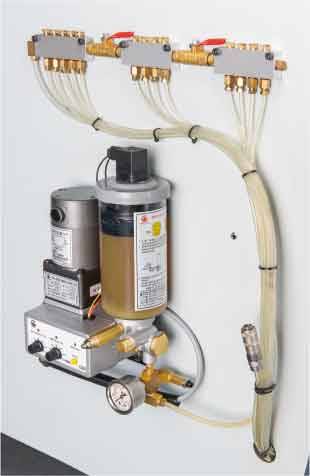

Centralized-Greasing
previous arrow
next arrow
LeaderMac-PlanerMac-Series
Extra-Ruggedly
Oversized-Outboard-Bearing
Floating-Vertical-Spindle
Centralized-Greasing
previous arrow
next arrow

Planermac 4-Sided Moulder

Inquire About High-Precision Industrial Planers

The Leadermac Planermac Series is a high-performance, heavy-duty planer designed for precision woodworking. With its 4-sided planing capabilities, it ensures exceptional surface finishes for a wide range of woodworking projects. Whether you’re involved in industrial planing or smaller-scale custom work, the Planermac delivers the reliability, durability, and speed you need to optimize your production.

Contact Us

Key Features of the Planermac 4-Sided Planer

Technical Specifications of the Planermac 4-Sided Planer

  • Spindle Configuration: Available with 2 to 11 spindles, providing flexibility for various planing operations.
  • Working Width: From 15 to 230 mm (0.6″ to 9″), with an optional upgrade to 330 mm (13″) for wider workpieces.
  • Working Thickness: Adjustable from 10 to 150 mm (0.39″ to 6″), with an optional upgrade to 200 mm (8″) for thicker materials.
  • Spindle Speed: Standard 6,000 RPM, with optional upgrades to 7,200 RPM or 8,000 RPM for high-speed planing.
  • Feed Speed: Infinitely variable from 6 to 36 m/min (20 to 118 FPM), with an optional upgrade to 48 m/min (157 FPM) for faster throughput.
  • Spindle Motor Capacity: Ranges from 7.5/11 kW to 37.5 kW, providing the necessary power for heavy-duty wood planing operations.

Performance and Operational Features of the Planermac 4-Sided Planer

  • High Precision and Efficiency: Designed for precision wood planing with high-speed feed capabilities, ensuring efficient and accurate production in both large and small batches.
  • Durable Construction: Built with a heavy-duty steel frame for maximum stability and longevity, making it ideal for high-production planing environments.
  • Advanced Spindle Technology: Equipped with high-precision spindles and super precision bearings, the Planermac ensures smooth, accurate cuts and superior surface finishes.
  • Independent Spindle Motors: Each spindle is driven by its own motor, providing optimal control and power for a wide range of planing applications.
  • Pneumatic Feed Rollers: The pneumatic feed rollers maintain consistent pressure, ensuring smooth and reliable feeding of workpieces during high-speed operations.
  • Full Sound and Safety Enclosure: A full safety enclosure reduces noise and protects operators, ensuring a safer and quieter working environment.
  • Digital Readouts: Accurate digital readouts allow for precise adjustments of spindles and pressure shoes, improving efficiency and ease of use.
  • Automatic Lubricator: The built-in automatic lubrication system minimizes maintenance needs, ensuring smooth operation and extending the machine’s lifespan.

Customization and Optional Features for the Planermac 4-Sided Planer

  • Hydro-Loc Outboard Bearings: Offers quick-change capability for the horizontal spindle, ensuring easy setup and reduced downtime.
  • Automatic Profile Jointing Device: Provides precision for profile cutter adjustments, enhancing the accuracy of profile cutting operations.
  • Automatic Straight Knife Jointing Device: Ensures precise straight knife cutter adjustments, improving the efficiency and quality of straight knife cuts.
  • Hardened Bed Plates: Designed for extended machine bed life, offering increased durability and stability for heavy-duty planing operations.
  • Quick Change Spindle: Allows for easy maintenance and quick setup changes, optimizing the machine for different planing tasks.
  • Power-Driven Outfeed Roller: Ensures smooth and consistent workpiece exit, preventing snags and improving overall production flow.Variable Feed Speed Drive: Offers flexible control over feed speed, allowing for adjustments based on the specific needs of each planing project.
  • Additional Pressure Element on Left Vertical Spindle: Provides enhanced stability, ensuring more accurate vertical planing operations.Independently Driven Top Infeed Roller: Improves the initial feeding of stock, enhancing productivity and ensuring smooth material entry.
  • Additional Top and Bottom Driven Infeed Rollers: Increases control over material feed, ensuring smoother and more reliable feeding during high-speed planing.
  • Infeed Workpiece Guide Rollers: Ensures smooth and accurate material entry, minimizing jams and ensuring consistent feed rates.
  • Chrome Plated Work Tables: Provides durable, smooth operation and increased longevity, making it ideal for heavy-duty planing.Automatic Board End Sensor: Detects board ends and adjusts accordingly, optimizing material handling and reducing waste during planing.
  • Electrical Cabinet Cooler: Maintains optimal operating temperatures for the machine’s electrical components, ensuring consistent performance during long production runs.

Planermac Brochure

PlanermacDownload

Testimonials

No testimonial found

FAQ

What is the maximum feed speed of the Planermac Planer?

The Planermac offers a standard feed speed of 6 to 48 m/min (19 to 157 FPM), with optional upgrades to 60 or 90 m/min (200 or 300 FPM) for high-speed wood planing.

What spindle configurations are available for the Planermac Planer?

The Planermac supports 2 to 11 spindles, providing flexibility for different planing profiles and production requirements.

What controller options are available for the Planermac Planer?

Choose from ProSet, EasySet, or SmartSet controllers, each offering different memory capacities and features for automated planing setup.

How does the Planermac improve productivity in high-speed planing operations?

The Planermac’s high-speed feed capabilities and durable frame streamline production, ensuring efficient wood planing while maintaining precision.

What industries benefit from using the Planermac 4-Sided Planer?

The Planermac is ideal for industries involved in furniture manufacturing, architectural woodworking, and high-speed industrial planing.

What additional equipment can be added to the Planermac Planer?

Additional equipment includes remote-controlled profile jointers, a grooved bed for short material, and a hydro-clamping system for enhanced performance in wood planing.

Other Information

Controllers

X

Controller Options

Proset Controller
PROSET CONTROLLER
  • 19″ panel PC

  • Product library (1000 sets)

  • Knife library (10,000 sets)

  • Automatic machine quick setup

  • Easy and powerful functionality

  • Workpiece settings on any axis as desired

  • The width and thickness settings can be easily set using the programmable controller

  • All axes are equipped with ballscrews and rotary encoders for feedback position control, providing high positioning accuracy and better cutting quality

  • The desired values for width and thickness can be conveniently pre-set and are displayed on an LED readout
Easyset Controller
EASYSET CONTROLLER (OPT.) Touch Screen Control
  • 5.7″ HMI (Memory 200 sets)

  • Automatic machine quick setup

  • Easy and powerful functionality

  • Workpiece settings on left and top axes as desired

  • The width and thickness setting can be easily set using the programmable controller

  • The desired values for thickness are displayed on and LED readout
Smartset Controller
SMARTSET CONTROLLER(OPT.)
Touch Screen Control
  • 9″ HMI (Memory 300 sets)

  • Automatic machine quick setup

  • Easy and powerful functionality

  • Setworks on any axis as desired

  • The Motorized Axes: derived by inverter, transmitted by ball screw, feedback by encoder

  • The desired values for radial and axial are displayed on HMI.

Spindle Configuration

X

Spindle Configurations

SpindleImage
LMC-4130PL 4-SPINDLESpindle
LMC-445 4-SPINDLESpindle
LMC-545 5-SPINDLESpindle
LMC-645 6-SPINDLESpindle
LMC-745 7-SPINDLESpindle
LMC-845 8-SPINDLESpindle

Enhanced Specifications

X

Spindle Configurations

STANDARD EQUIPMENT / Planermc – LMC 245PL to LMC11106PLStandard Base EquipmentAvailable Options
Number of Spindles, min-max2 to 11Special Machine Configurations on request
Working Width (at a tool cutting circle of 125mm-200mm)15~450mm (0.59″~17.7″)500mm (20″) ; 600mm (24″) ; 700mm (27.5″) ; 1300mm (51.1″)
Working Thickness (at a tool cutting circle of 125mm-200mm)10~200mm (0.39″~7.1″)to 200mm (8″) ; to 250mm (10″) ; to 300mm (12″) ;or to 350mm (14″)
Basic Spindle Motor capacity (Wye Delta Soft Starts on All Motors)11 KW / 15HPto 75KW (100HP)
Spindle Speed5500 RPM6000 RPM or 7200 RPM
Spindle Diameter50mm (2″)1 13/16″ or 2 1/8″
Tool Cutting Circle,1st Bottom Spindle, min-max125~180mm (5″~7.1″)
Tool Cutting Circle, Vertical Spindles, Left, min-max125~200mm (5″~8″)to 250mm (10″)
Tool Cutting Circle, Vertical Spindles, Right, min-max125~200mm (5″~8″)to 250mm (10″)
Tool Cutting Circle, Horizontal Spindles, Top, min-max125~200mm (5″~8″)to 250mm (10″)
Tool cutting circle, Horizontal Spindles, Bottom, min-max125~200mm (5″~8″)to 250mm (10″)
Feed Motor3.7 KW / 5HP / INVERTERto 15kw (25 HP)
Feed Speed, infinitely variable by VFD Inverter duty Motor6~24 m/min (20~80FPM)to 36mpm (120fpm) ; 48mpm (160fpm) ; 60mpm (200fpm) or 90mpm (300fpm)
Top Feed Roller Diameter200mm (8″)
Top Feed Roller Width4 x 50mm (2″)
Pneumatic Pressure for feed rollers, max6 bar (85psi)
Adjustment range for infeed table and edge-jointing fence10mm (0.4″)
Adjustment range for vertical spindle (axial)40mm (1.57″)
Adjustment range for horizontal spindle (axial)20mm (0.78″)
Length of the Infeed Straightening Table1.4M (55″)1M (39″) ; 2M (78″) ; 2.5M (98″) or 3M (120″)
Mechanical digital readouts for the pressure shoes & hold-down unitIncluded
Full Sound and Safety Enclosure w/ Strobe-free LightingIncludedExtra Insulation with Steel Punched Sheet Steel Ineterior
Motorized vertical adjustment of Feed BeamIncluded
Pneumatic Lateral Pressure Roller System opposite first right spindleIncluded
Extra HD Chainless Cardan Shaft Feed System w/ExHD GearboxesIncluded
Quick Set Setworks on Near Side Head (s) & Top Heads (Radial Set)Includedoptional on all Axis and SmartSet Controls as noted Below optional
