Platinum 4-Sided Moulder
Inquire About High-Speed Industrial Woodworking Machinery

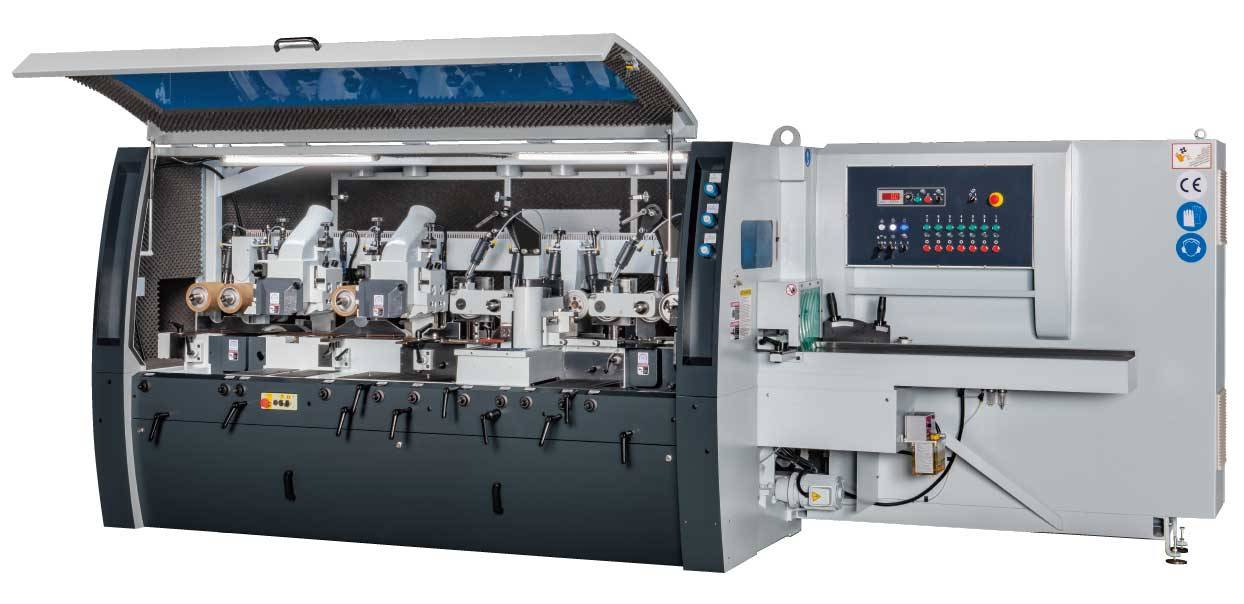

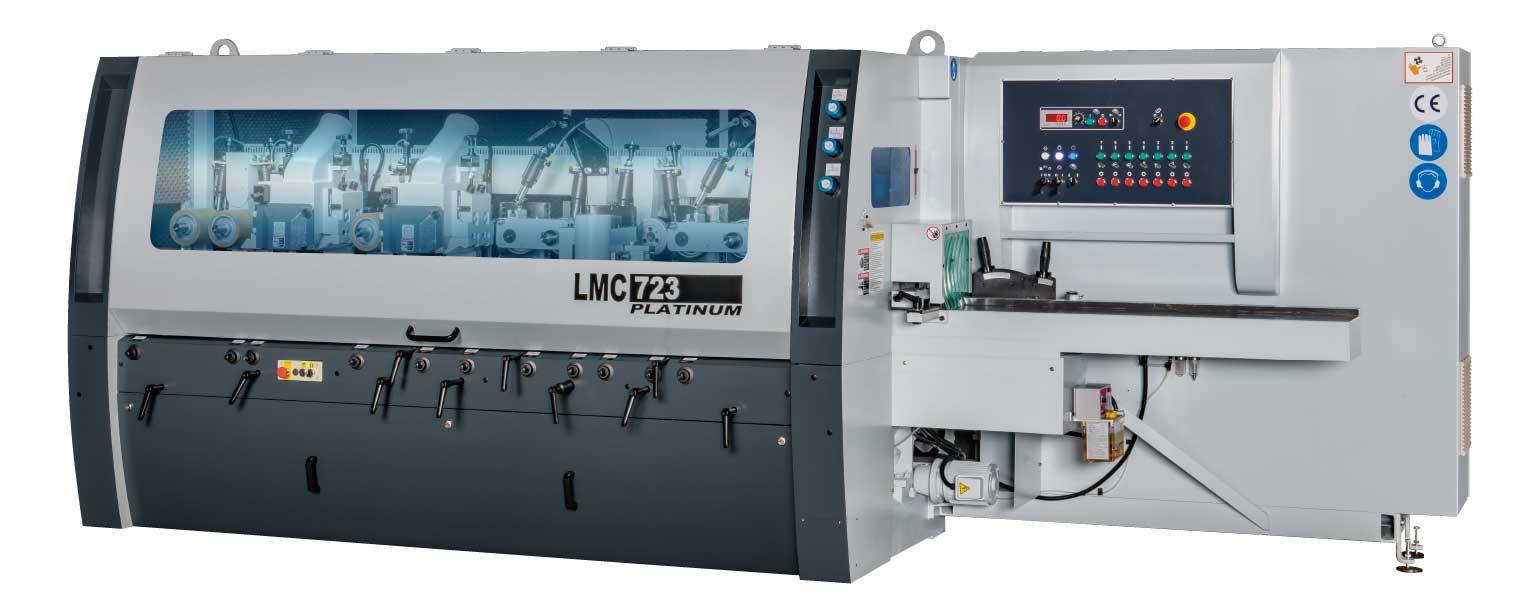

The Leadermac Platinum Series is designed for high-speed industrial woodworking and precision moulding. As a 4-sided moulder, it offers unmatched accuracy and durability, ensuring superior surface finishes and consistent results. Built for industrial-scale woodworking operations, the Platinum moulder delivers heavy-duty performance, making it ideal for companies looking for a reliable woodworking machine for large-scale production.
Key Features of the Platinum 4-Sided Moulder
Technical Specifications Of The Platinum 4-Sided Moulder
- Spindle Configuration: Available with 4 to 10 spindles, providing flexibility for various industrial woodworking applications.
- Working Width: Adjustable from 15 to 300 mm (0.6″ to 11.8″), capable of handling a wide range of workpieces.
- Working Thickness: From 6 to 200 mm (0.24″ to 7.87″), suitable for both thin and thick materials in woodworking operations.
- Spindle Speed: Standard 6,000 RPM, with optional upgrades to 7,200 RPM or 8,000 RPM for increased productivity in precision moulding.
- Feed Speed: Variable feed speed from 6 to 60 m/min (20 to 196 FPM), with an optional upgrade to 80 m/min (262 FPM) for faster throughput in large-scale woodworking.
- Spindle Motor Capacity: Ranges from 7.5 kW to 22 kW, delivering ample power for heavy-duty wood planing and moulding operations.
Performance and Operational Features of the Platinum 4-Sided Moulder

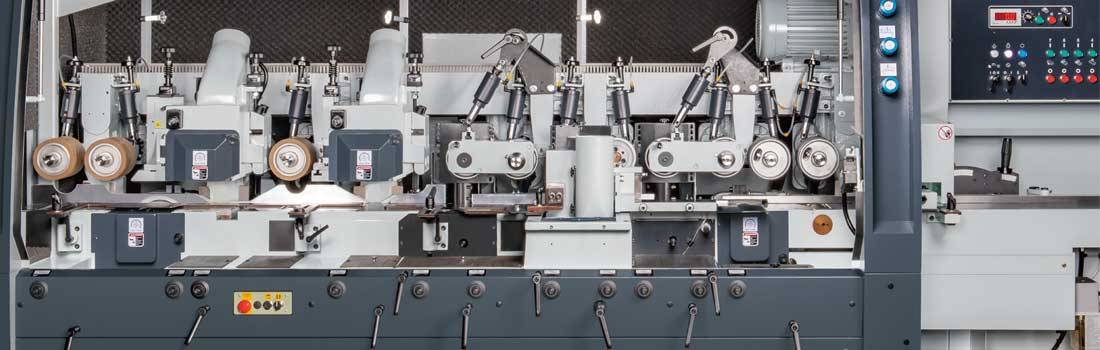

- Heavy-Duty Frame: Built with a rugged steel frame to ensure stability and durability during high-speed, large-scale woodworking operations.
- Precision Spindles: Equipped with super-precision bearings, delivering high-quality surface finishes and ensuring accuracy in demanding moulding applications.
- Digital Readouts: Integrated digital displays facilitate precise adjustments of spindles and pressure elements, optimizing efficiency and improving productivity in industrial woodworking.

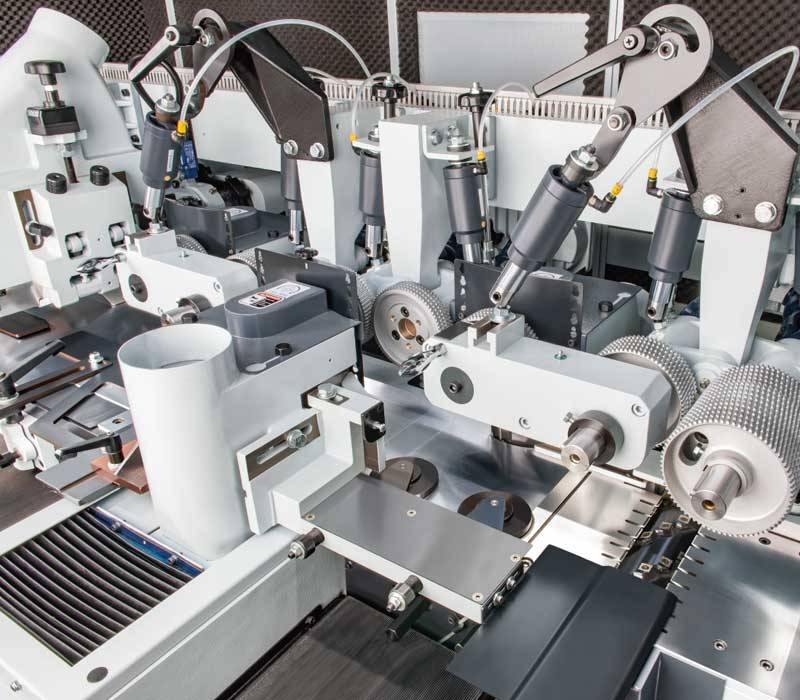

- Pneumatic Feed Rollers: Provides consistent pressure, ensuring smooth and reliable feeding of workpieces, reducing downtime and improving throughput during high-speed production.
- Automatic Lubrication: The built-in automatic lubrication system minimizes maintenance needs and ensures smooth, continuous operation over extended production runs.
- Sound and Safety Enclosure: A full soundproof and safety enclosure protects operators and reduces noise levels, creating a safer and quieter work environment in industrial woodworking settings.
Customization and Optional Features for the Platinum 4-Sided Moulder
- Hydro-Loc Quick Change Bearings: Simplifies spindle maintenance, allowing for quick changes and reducing downtime during high-speed woodworking operations.
- Automatic Profile Jointing Device: Ensures precise profile cutting, enhancing the quality and accuracy of intricate moulding applications.
- Automatic Straight Knife Jointing Device: Provides accurate straight knife cutting, ensuring repeatability and precision in wood planing and moulding tasks.
- Variable Feed Speed Drive: Offers flexible control over feed speeds, allowing operators to adjust production rates to meet specific industrial woodworking requirements.
- Additional Pressure Elements: Enhances stability during high-speed moulding, ensuring consistent results and smoother operation.
- Infeed Workpiece Guide Rollers: Facilitates smooth material entry, improving feeding accuracy and reducing the likelihood of jams during high-speed operations.
- Chrome Plated Work Tables: Improves durability and smoothness of operation, extending the life of the work tables in heavy-duty woodworking environments.
- Board End Sensor: Detects and adjusts for board ends automatically, optimizing material handling and reducing waste during high-volume production.
- Electrical Cabinet Cooler: Maintains the optimal temperature for electrical components, ensuring consistent performance in extended high-speed production runs.
Testimonials
No testimonial found
FAQ
What is the maximum feed speed of the Platinum 4-Sided Moulder?
The Platinum 4-Sided Moulder offers a feed speed range of 6 to 60 m/min (20 to 196 FPM), with an optional upgrade to 80 m/min (262 FPM) for faster throughput in high-speed industrial woodworking applications.
What spindle configurations are available for the Platinum Moulder?
The Platinum supports 4 to 10 spindles, offering flexibility to handle various moulding profiles and production requirements for precision woodworking.
What industries benefit most from the Platinum 4-Sided Moulder?
The Platinum Moulder is ideal for industries such as furniture manufacturing, architectural moulding, and large-scale industrial woodworking, where precision and high-speed production are essential.
How does the Platinum Moulder enhance productivity in high-speed woodworking operations?
With its high-speed feed capability and advanced spindle technology, the Platinum improves efficiency, ensuring fast, accurate production while maintaining high-quality surface finishes.
Can the Platinum Moulder be customized for specific woodworking needs?
Yes, the Platinum Moulder offers multiple customization options, such as variable feed speed control, automatic profile jointing devices, and hydro-loc quick-change bearings to meet specific industrial woodworking requirements.
What additional equipment can be integrated with the Platinum Moulder?
The Platinum Moulder can be equipped with chrome-plated work tables, board end sensors, and an electrical cabinet cooler for improved performance and durability during continuous high-speed production.
Other Information
Controller Options
 PROSET CONTROLLER |
|
 EASYSET CONTROLLER (OPT.) Touch Screen Control |
|
 SMARTSET CONTROLLER(OPT.) Touch Screen Control |
|
Spindle Configurations
| Spindle | Image |
| LMC-423 4-SPINDLE |  |
| LMC-523 5-SPINDLE |  |
| LMC-523 5-SPINDLE (universal spindle) |  |
| LMC-623 6-SPINDLE |  |
| LMC-723 7-SPINDLE |  |
| LMC-823 8-SPINDLE |  |
Spindle Configurations
| STANDARD EQUIPMENT: | LMC-223P to LMC-823P | 2 Heads to 8 Heads |
| Working Width(at a tool cutting circle of 140mm) | Standard Base Equipment 15-230mm (0.59″-9.1″) | Optional Specs to 260 or 300mm (10.2″ or 12″ optional) |
| Working Height(at a tool cutting circle of 163mm) | 10-150mm (0.39″-6″) | to 6-200mm (to 1/4″-8″ optional) |
| Number of Spindles, min-max | 1 to 8 Heads / Spindles | All different types of Spindle Configurations – optional |
| Universal Last Head or Rip Saw Attachment | Available – option | |
| Basic motor Capacity of Feed – VFD – Variable Frequency Drive | 3.7KW / 5HP | |
| Feed speed, infinitely variable by frequency driven motor | 6 – 30 m/min (20 – 100 fpm) | |
| Basic Motor Capacity per Spindle | 7.5KW / 10HP Vert & 11KW / 15HP Hor. | to 18.5KW/25HP – optional |
| Spindle Speed | 6000 RPM | 7200 RPM or 8000 RPM |
| Spindle Diameter | 40mm (1.6″) | 50mm, 1 1/2″, 1 13/16″ |
| Tool cutting circle, first bottom spindle, min-max | 125-160mm (4.9″-6.3″) | |
| Tool cutting circle, vertical spindles, left, min-max | 112-200mm (4.4″-7.9″) | |
| Tool cutting circle, vertical spindles, right, min-max | 112-200mm (4.4″-7.9″) | |
| Tool cutting circle, horizontal spindles, top, min-max | 112-200mm (4.4″-7.9″) | |
| Tool cutting circle, horizontal spindles, bottom, min-max | 112-200mm (4.4″-7.9″) | |
| Feed roller diameter | 140mm (5.5″) | |
| Top Feed roller width – each roll with multiples on all Top shafts | 3 x 50mm (2″) | |
| Bottom Feed Roll Width | Full Width | |
| Pneumatic pressure for feed rollers, max | 6 bar (85psi) | |

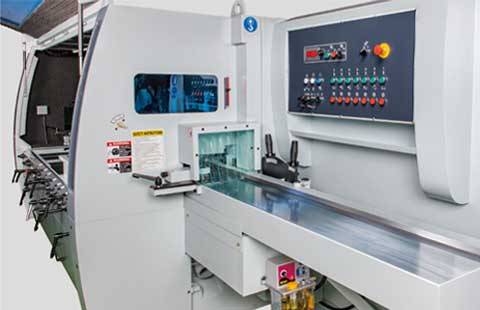

| Adjustment range for Infeed Table | 10mm (0.4″) | |
| Adjustment range for Edge-jointing Fence | 10mm (0.4″) | |
| Adjustment range of Vertical spindles (axial) | 40mm (1.58″) | 100mm (4″) – optional with setworks if desired |
| Adjustment range of Horizontal Spindles (axial) | 20mm (0.79″) | |
| Length of the straightening table | 2M (78.7″) | 2.5M or 3M (98″ or 120″ – optional) |
| Diameter of Dust Hood for vertical spindle | 125mm (5″) | |
| Diameter of Dust Hood for horizontal spindle | 125mm (5″) | |
| Chainless Cardan Shaft Feed System w/ HD Gearboxes | Standard | |
| Motorized vertical adjustment of feed beam | Standard | |
| Lateral pressure roller opposite first right spindle | Spring Tensioned Standard | Pneumatic Tensioned – optional |
| Sectional Radial Lift – Linage Style Top Head Chipbreakers | Spring Tensioned Standard | Pneumatic Tensioned – optional |
| Mechanical digital readouts for the pressure shoes & hold-down unit | Standard | Metric or Inch Readouts |
| Mechanical Digital Readouts on all Spindle Axis | Single – Std. | Dual on Near Side, & Tops – Radial Readouts & Quik Set – optional |
| Central location of all lubrication points at the front of the machine | Standard | |
| Auot Table Lube System | Standard | |
| Full sound and safety enclosure | Standard |
