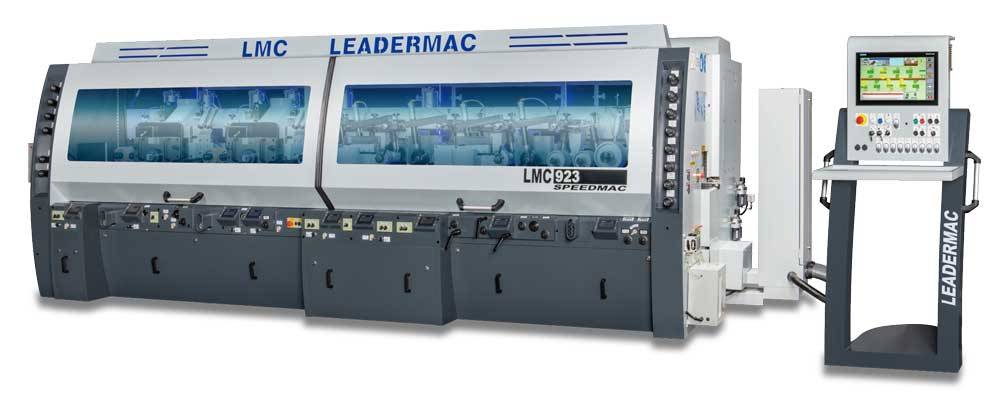

SpeedMac-Series

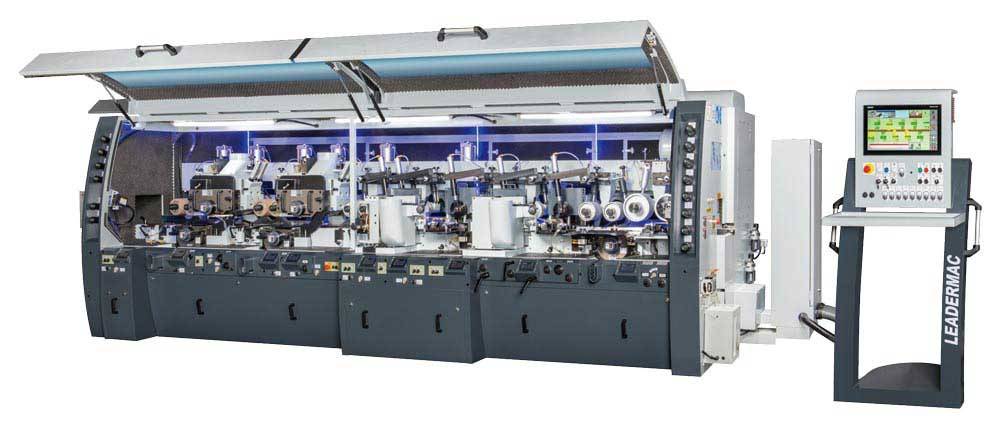

LeaderMac-SpeedMac

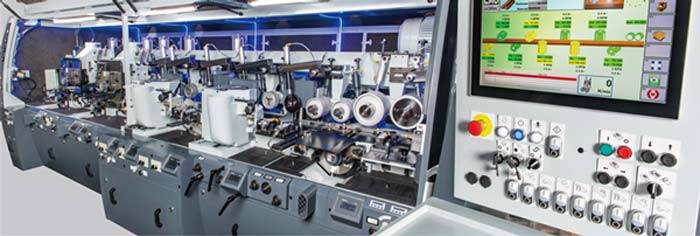

Convenint-Spindle-Adjustment

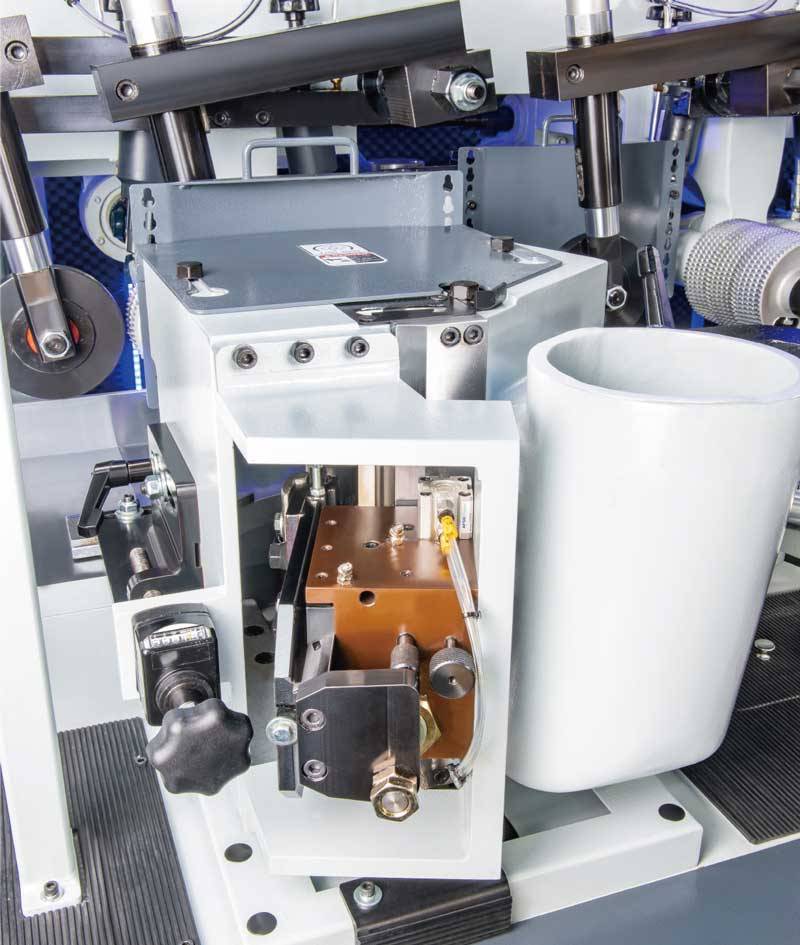

Straight-Knife-Jointer

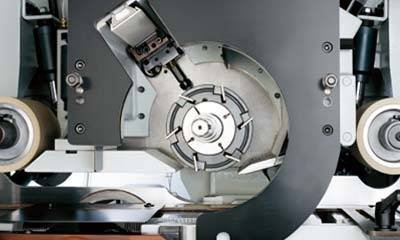

Profile-Jointer
previous arrow
next arrow
SpeedMac-Series
LeaderMac-SpeedMac
Convenint-Spindle-Adjustment
Straight-Knife-Jointer
Profile-Jointer
previous arrow
next arrow

SpeedMac 4-Sided Moulder

Inquire About High-Speed 4-Sided Moulders

The Leadermac SpeedMac Series is engineered for high-speed, high-precision woodworking, delivering significant time savings and exceptional accuracy for both large and small production runs. Equipped with heavy-duty spindles mounted on premium bearings, the SpeedMac guarantees a superior surface finish, minimizing the need for additional sanding and maximizing production efficiency.

Contact Us

Key Features of the SpeedMac 4-Sided Moulder

Technical Specifications of the SpeedMac 4-Sided Moulder

  • High-Speed Feed: Achieve up to 60 m/min, with an optional upgrade to 90 m/min for faster production in high-volume environments.
  • Convenient Spindle Adjustment: Front access for quick and precise setup.
  • Safety and Noise Reduction: Full enclosure for protection and reduced noise.
  • Independent Spindle Motors: Each spindle is powered individually for stability and precision.
  • Automatic Lubrication: Extends lifespan by reducing manual maintenance.
  • Digital Readouts: Real-time monitoring and precise adjustments.
  • Heavy-Duty Construction: One-piece cast iron/steel frame for stability during heavy-duty operations.

Performance Features of the SpeedMac 4-Sided Moulder

  • Number of Spindles: Available with 5 to 10 spindles for flexible production needs.
  • Working Width: 20 to 230mm, with optional upgrades to 310mm for larger workpieces.
  • Working Thickness: 10 to 150mm, upgradeable to 200mm.
  • Spindle Motor Capacity: Ranges from 15 HP to 50 HP for high-capacity operations.
  • Spindle Speed: Standard 6,000 RPM, with upgrades to 8,000 RPM for higher precision.
  • Variable Feed Speed: Adjustable from 6 to 60 m/min, with optional upgrades to 90 m/min for faster throughput.

Customization and Optional Features for the SpeedMac 4-Sided Moulder

Controller Options:

  • ProSet Controller: 19″ panel PC with product and knife libraries, automatic setup, and high positioning accuracy.
  • EasySet Controller: 5.7″ touch screen HMI with memory for 200 sets, enabling easy operation and automatic setup.
  • SmartSet Controller: 9″ touch screen HMI with memory for 300 sets and motorized axes for accurate positioning.
  • Profile Jointers: Remote-controlled jointers for superior surface quality.
  • Hydro-Clamping System: Reduces setup time while ensuring consistent quality.
  • Custom Spindle Configurations: From 5 to 11 spindles for flexibility.
  • Grooved Bed: Ideal for short material in high-speed production.

Speedmac Brochure

speedmacDownload

Testimonials

No testimonial found

Frequently Asked Questions About the SpeedMac 4-Sided Moulder

What is the maximum feed speed of the SpeedMac Moulder?

The SpeedMac offers a standard feed speed of 6 to 60 m/min (20 to 200 FPM), with an optional upgrade to 90 m/min (300 FPM), making it ideal for high-speed production.

What spindle configurations are available for the SpeedMac Moulder?

The SpeedMac supports 5 to 10 spindles, providing flexibility to handle a wide range of moulding profiles and production requirements.

What controller options are available for the SpeedMac Moulder?

You can choose between ProSet, EasySet, and SmartSet controllers, each offering varying memory capacities and features for precise and automated machine setup.

How does the SpeedMac improve productivity in high-speed operations?

The SpeedMac’s high-speed feed capabilities of up to 90 m/min, combined with individual spindle motors and advanced controllers, streamline production, resulting in faster cycle times and reduced manual setup.

What industries benefit from using the SpeedMac Moulder?

The SpeedMac is ideal for industries that require high-speed production and precision moulding, such as furniture manufacturing, architectural moulding, and other large-scale woodworking applications.

What additional equipment can be added to the SpeedMac Moulder?

You can integrate additional equipment such as a Grooved Bed for short material handling, remote-controlled profile jointers, and a hydro-clamping system for enhanced performance and versatility.

Other Information

Controllers

X

Controller Options

Proset Controller
PROSET CONTROLLER
  • 19″ panel PC

  • Product library (1000 sets)

  • Knife library (10,000 sets)

  • Automatic machine quick setup

  • Easy and powerful functionality

  • Workpiece settings on any axis as desired

  • The width and thickness settings can be easily set using the programmable controller

  • All axes are equipped with ballscrews and rotary encoders for feedback position control, providing high positioning accuracy and better cutting quality

  • The desired values for width and thickness can be conveniently pre-set and are displayed on an LED readout
Easyset Controller
EASYSET CONTROLLER (OPT.) Touch Screen Control
  • 5.7″ HMI (Memory 200 sets)

  • Automatic machine quick setup

  • Easy and powerful functionality

  • Workpiece settings on left and top axes as desired

  • The width and thickness setting can be easily set using the programmable controller

  • The desired values for thickness are displayed on and LED readout
Smartset Controller
SMARTSET CONTROLLER(OPT.)
Touch Screen Control
  • 9″ HMI (Memory 300 sets)

  • Automatic machine quick setup

  • Easy and powerful functionality

  • Setworks on any axis as desired

  • The Motorized Axes: derived by inverter, transmitted by ball screw, feedback by encoder

  • The desired values for radial and axial are displayed on HMI.

Spindle Configuration

X

Spindle Configurations

SpindleImage
LMC-523 5-SPINDLESpindle
LMC-623 6-SPINDLESpindle
LMC-723 7-SPINDLESpindle
LMC-823 8-SPINDLESpindle
LMC-923 9-SPINDLESpindle
LMC-3V-623 6-SPINDLESpindle
LMC-3V-723 7-SPINDLESpindle
LMC-3V-823 8-SPINDLESpindle

Enhanced Specifications

X

Spindle Configurations

STANDARD EQUIPMENT:LMC-223SP to LMC1123SPAvailable Options
Number of Heads / Spindles, min-max2 to 11Any Head Configuration – availableto
Working Width (with a tool cutting circle of 163mm)20-230mm (0.78″-9″)to 310mm (12.2″), 330mm (13″)
Working Thickness (with a tool cutting circle of 163mm)10-150mm (0.39″-6″)to 6mm (.25″) to 200 (8″)
Basic Spindle Motor capacity – Wye-Delta (Soft Starts) on all motors11/12KW (15HP)to 37.5KW / 50HP
Spindle Diameter50mm1 13/16″ / 2 1/8″
Spindle Speed6000 RPM7200 / 8000 RPM
Tool cutting circle, First Bottom Spindle, min-max125-200mm (5″-7.8″)
Tool cutting circle, Vertical Spindles, min-max140-250mm (5.5″-9.8″)
Tool cutting circle, Horizontal Spindles, min-max140–250mm (5.5″-9.8″)
Feed Motor11KW / 15HP / INVERTER15 / 18.5KW (20 / 25HP / INVERTER)
Feed speed, infinitely variable by frequency (VFD) driven6-60 m/min (20 / 200fpm)9-90m/min (30-300fpm)
Top Infeed Rolls – Diameter205.36mm (8″)
other Top Feed Rolls – Diameter140mm (5.5″)
Top Feed Roll Width – Multiple Rolls Stacked on each Top Roll Shaft50mm (2″) / Roll
Bottom Feed Roll WidthFull Width
Pneumatic pressure for feed rollers, max6 bar (85psi)
Adjustment range for Infeed Table (Btm Head Cut) and Edge Jointing Fence10mm (.4″)
Adjustment range of vertical spindles (axial)80mm (3.2″)
Adjustment range of horizontal spindles (axial)40mm (1.6″)
Length of the Infeed / Straightening table0.8M (32″)1.4 / 2 / 2.5 / 3M (55″ / 78″ / 98″ / 120″)
Diameter of Dust Hoods for Vertical & Horizontal SpindlesØ175mm (6.9″)
Digital Readouts on All Axis of all HeadsStd.
Digital Readouts for the Chip Breaker Shoes & Pressure ShoesStd.
Full Sound and Safety Enclosure w/ Strobe Free LightingStd.
Motorized vertical adjustment of Feed BeamStd.
Multiple Lateral Pneumatic Pressure Roller opposite first right spindleStd.
Chainless Extra HD Cardan Shaft Feed SystemStd.
REC Setworks on Near Side Head (s) & Top (s) – RadialStd.
