GR180 Industrial Knife Grinder
Inquire for more information
The GR180 Industrial Knife Grinder is a precision-engineered machine designed for industrial knife sharpening across industries like printing, paper, metal processing, woodworking, and recycling. Manufactured in Poland by GRAFS, this grinder ensures consistent high-quality sharpening for knives such as guillotine knives, chipper knives, granulator blades, and veneer knives. Available in three grinding lengths (1800 mm, 2000 mm, and 2400 mm), it provides versatility for various knife sharpening applications.
Key Features of the GR180 Industrial Knife Grinder
Technical Specifications of the GR180 Industrial Knife Grinder
- Grinding Lengths: Available in 1800 mm, 2000 mm, and 2400 mm options for various industrial needs.
- Motor Power: Choose from 3.5 kW, 5.5 kW, or 7.5 kW variants for efficient performance.
- Grinding Wheel Diameter: Configurable based on model specifications.
- Carriage Speed: Adjustable from 2 to 20 m/min via a potentiometer for precision grinding.
- Table Tilting: Tilts from 0° to 90° for versatile grinding applications.
- Cooling System: Features a magnetic separator with rotating neodymium magnets and paper separator for optimized cooling.
Performance Features of the GR180 Industrial Knife Grinder
- Versatile Grinding: Suitable for sharpening various industrial knives, including those with unique specifications.
- High Precision: Equipped with a swivel magnetic table and advanced control systems for efficient and accurate knife grinding.
- Durable Construction: Built with a robust machine base and high-quality components for long-lasting performance.
- Advanced Cooling System: Integrated coolant filtration system ensures optimal cooling during heavy-duty grinding.

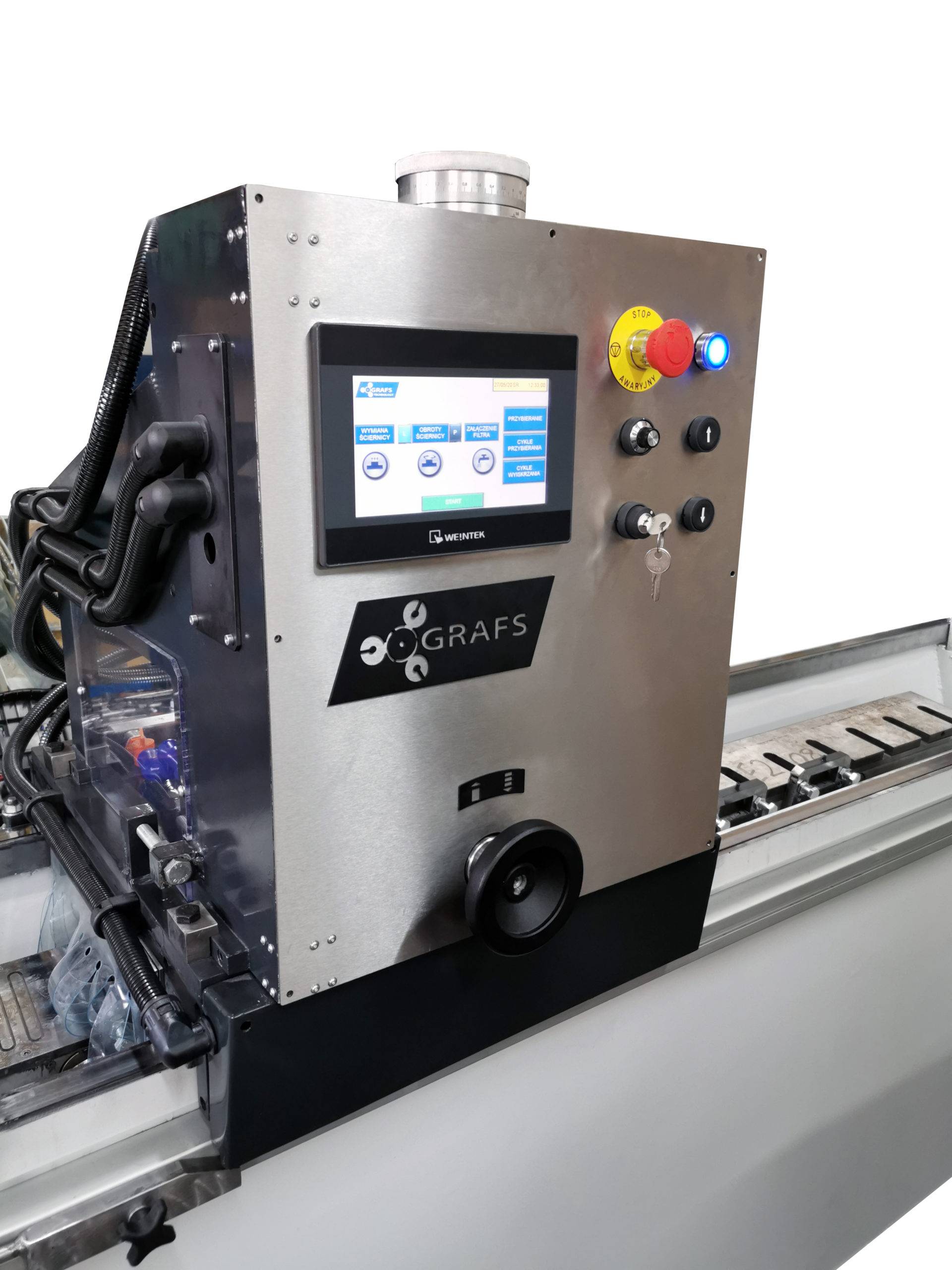

- User-Friendly Interface: Features a 7″ HMI touch screen and Programmable Logic Controller (PLC) for easy operation and control.
Customization and Optional Features of the GR180 Industrial Knife Grinder
The GR180 Industrial Knife Grinder can be customized to meet specific operational needs across various industries:
- Motor Variants: Choose from 3.5 kW, 5.5 kW, or 7.5 kW grinding wheel motors, allowing you to select the power that best suits your industrial knife sharpening requirements.
- Grinding Length Options: Available in three different lengths—1800 mm, 2000 mm, or 2400 mm—to accommodate different knife sizes, including guillotine knives, chipper knives, and granulator blades.
- Advanced Control Panel: Equipped with a standard 7” HMI touch screen and Programmable Logic Controller (PLC) for tailored operational control, ensuring precise and efficient knife grinding operations.
Testimonials
No testimonial found
FAQ
What types of knives can the GR180 Industrial Knife Grinder sharpen?
The GR180 sharpens a wide range of industrial knives, including guillotine knives, chipper knives, granulator blades, and veneer knives, providing precise results across various industries.
What motor power options are available for the GR180 grinder?
The GR180 offers motor options of 3.5 kW, 5.5 kW, and 7.5 kW, allowing flexibility for different industrial knife sharpening needs.
Can the GR180 grinder accommodate different knife lengths?
Yes, the GR180 supports three grinding lengths: 1800 mm, 2000 mm, and 2400 mm, offering versatility for various knife sizes.
What type of control system does the GR180 grinder use?
The GR180 is equipped with a 7” HMI touch screen and Programmable Logic Controller (PLC) for customizable, easy-to-use control in precision knife grinding.
How does the GR180 ensure efficient cooling during grinding operations?
The advanced cooling system features a magnetic separator and paper filter, preventing overheating and optimizing grinding performance for industrial applications.
Other Information
Configurations
| Specification | GR180 (1800 mm) | GR180 (2000 mm) | GR180 (2400 mm) |
|---|---|---|---|
| Max Grinding Length | 1800 mm | 2000 mm | 2400 mm |
| Motor Power | 3.5 kW, 5.5 kW, 7.5 kW | 3.5 kW, 5.5 kW, 7.5 kW | 3.5 kW, 5.5 kW, 7.5 kW |
| Carriage Speed | 2 – 20 m/min | 2 – 20 m/min | 2 – 20 m/min |
| Magnetic Table Size | Customizable | Customizable | Customizable |
| Table Tilting Range | 0° to 90° | 0° to 90° | 0° to 90° |
| Cooling System | Magnetic separator with rotating neodymium magnets and paper separator | ||
| Control System | HMI 7” touch screen and PLC | ||
| Machine Base | Electrowelded steel with hardened PWTR rollers | ||
| Noise Reduction | Integrated dust covers and coolant dust prevention |
