Slicermac 4-Sided Moulder
Inquire About High-Performance Moulding & Slicing Solutions

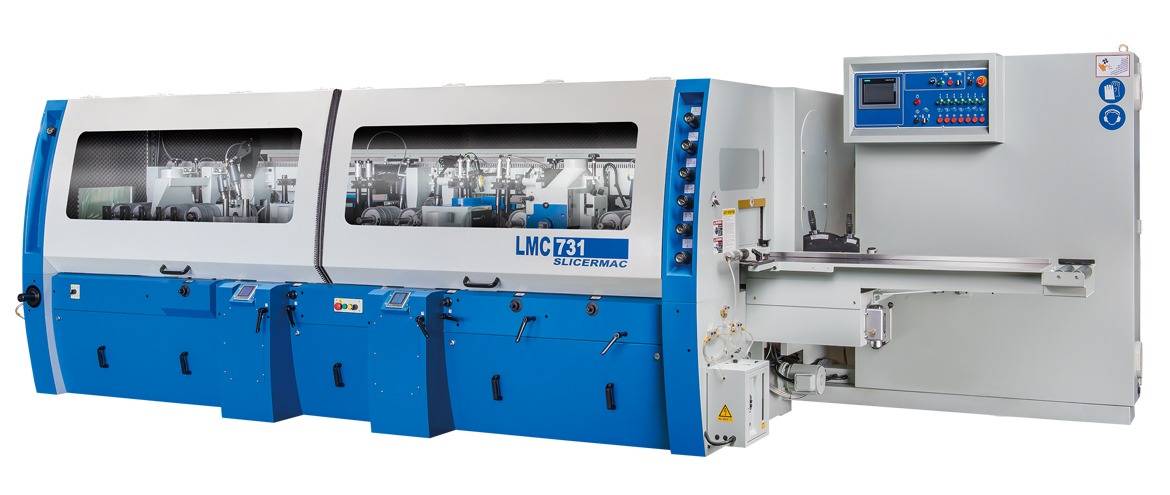

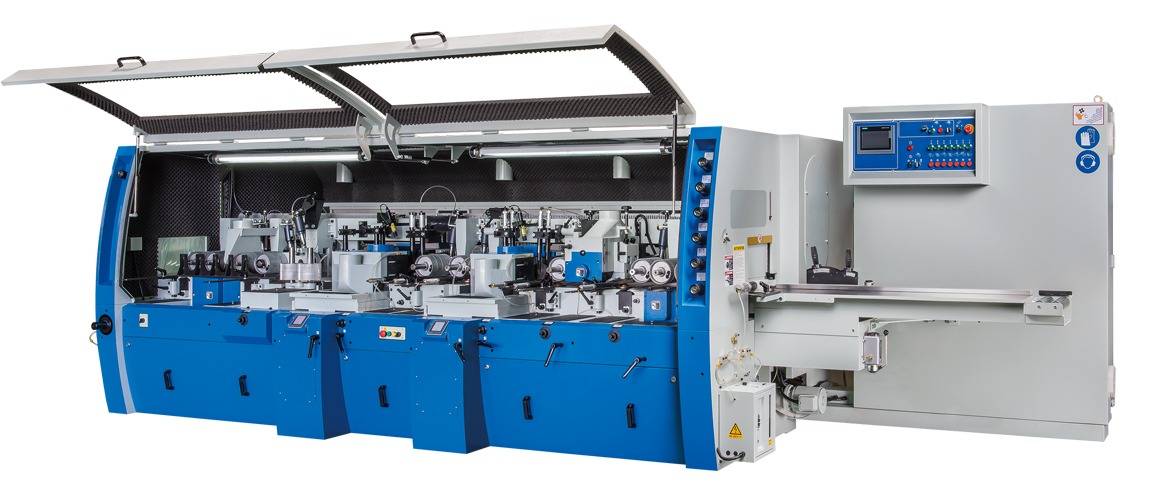

The Slicermac Vertical Rip Saw by Leadermac integrates 4-sided moulding with advanced slicing units, providing the perfect balance of speed, versatility, and productivity. Designed for industrial woodworking applications, the Slicermac features a fast feed speed of 24 m/min and a precision 6,000 RPM spindle, ensuring efficient and accurate cuts. Built with a rigid cast iron construction, it delivers consistent, deformation-free machining in high-volume production environments. Equipped with two slicing units, the Slicermac ensures clean and precise operations, making it ideal for large-scale woodworking tasks that require both moulding and slicing capabilities.
Key Features of the Slicermac 4-Sided Moulder with Vertical Rip Saw
Technical Specifications of the Slicermac Industrial 4-Sided Moulder
- Spindle Configuration: Available with 2 to 8 spindles, providing flexibility for various moulding and slicing applications in industrial woodworking.
- Working Width for Moulding: Accommodates a maximum working width of 230 mm at a cutting circle of 163 mm, perfect for large-scale moulding profiles.
- Working Height for Moulding: Supports material thickness ranging from 10 to 150 mm at a cutting circle of 163 mm, ensuring versatility in woodworking projects.
- Working Width for Vertical Rip Saw (VM): A working width of 200 mm, designed to handle larger pieces during high-speed production.
- Working Height for Vertical Rip Saw (VM): Capable of handling material heights up to 100 mm, making it ideal for precise vertical cutting tasks.
- Spindle Speed: Standard spindle speed of 6,000 RPM, with an optional 4,000 RPM setting for the multiple rip saw spindle, offering flexibility for different cutting applications.
- Feed Speed: Standard feed speed ranges from 6 to 24 m/min, with an optional upgrade to 36 m/min, ensuring fast, high-volume output in industrial environments.
- Spindle Motor Capacity: Equipped with a 5.5 kW (7.5 HP) motor per spindle, providing ample power for heavy-duty cutting in industrial woodworking.
- Tool Cutting Circle (First Bottom Spindles): Supports a cutting circle range of 125 to 160 mm, allowing for precise moulding profiles.
- Max. Saw Blade Cutting Circle (1st Slicing Unit): Up to 250 mm, ensuring efficient and precise slicing for a variety of woodworking tasks.
- Max. Saw Blade Cutting Circle (2nd Slicing Unit): Up to 300 mm, offering greater flexibility for high-speed slicing operations.
Performance Features of the Slicermac 4-Sided Moulder for High-Speed Woodworking
- Various Spindle Configurations: Customizable spindle configurations available to meet diverse moulding and slicing requirements in industrial woodworking.
- Chainless Cardan Shaft Transmission: Ensures smooth, efficient operation, reducing wear and tear for long-term high-volume production.
- Rugged Construction: Built for high rigidity and superior performance, the Slicermac is ideal for continuous use in demanding industrial applications.
- Hard-Chromed Table: Provides maximum resistance and durability, ensuring the table withstands heavy-duty operations and maintains long-lasting performance.
- Independently Powered Pneumatic Rollers: Allows for variable thickness feeding, ensuring smooth and consistent material handling across different woodworking tasks.

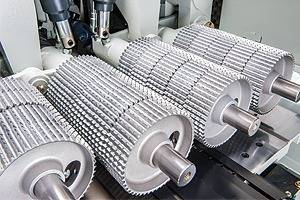

- Enlarged Rollers: Designed for smooth and slip-free operations, the enlarged rollers ensure consistent feeding for precise moulding and slicing.
- Multi-Rip Saw: Available on the last horizontal spindle for precise ripping (optional), making the Slicermac versatile for moulding and slicing applications.

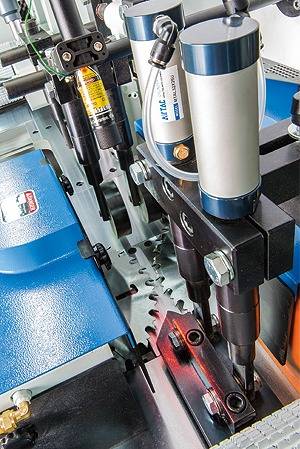

- Two Slicing Units: Equipped with two slicing units for superior slicing quality, featuring laser guidance for perfect alignment and precision cutting.
- Easy Spindle Adjustment: Front levers allow for quick and easy spindle adjustments, reducing downtime and increasing productivity in industrial woodworking operations.
- Fast Feeding Speed: Standard feed speed of 24 m/min, with an optional upgrade to 36 m/min, allowing for faster production in high-speed woodworking.
- Full Safety Enclosure: Reduces noise and enhances operator safety, ensuring compliance with industrial safety standards.
Customization and Optional Features of the Slicermac 4-Sided Moulder with Slicing Units
- Tool Setting and Measuring Devices: Ensures precise adjustments for accurate and efficient moulding and slicing operations, enhancing overall production quality.
- Increased Horsepower: Optional increased horsepower improves performance for heavy-duty industrial woodworking, enabling faster and more powerful cutting.
- CE Specifications: The Slicermac complies with European safety standards, ensuring it meets the required industrial safety and regulatory guidelines.
- Fast Feeding Speed: Achieve speeds of up to 36 m/min, optimizing production efficiency for high-speed industrial woodworking applications.
- Cooling System for Slicing Units: Ensures the slicing units maintain optimal operating temperatures, prolonging the machine’s lifespan and ensuring consistent precision cutting.
- Motor with Inverter Control for Slicing Units: Provides variable speed control for the slicing units, allowing operators to adjust speed based on the specific cutting requirements.
- Bottom Multi-Rip Saw Unit: Adds additional ripping capabilities for increased versatility, ensuring the machine can handle moulding and ripping tasks efficiently.
- Clamping System: The secure clamping system holds workpieces firmly in place, ensuring precise and safe operations during high-speed production.
- Working Width up to 310mm: Supports larger workpieces up to 310 mm, offering flexibility for a variety of moulding and slicing profiles in industrial woodworking.
Testimonials
No testimonial found
Frequently Asked Questions About the Slicermac 4-Sided Moulder
What is the maximum feed speed of the Slicermac 4-Sided Moulder?
The Slicermac offers a standard feed speed of 6 to 24 m/min, with an optional upgrade to 36 m/min, making it ideal for high-speed industrial woodworking operations.
Can the Slicermac be equipped with a multi-rip saw unit?
Yes, the bottom multi-rip saw unit is available as an optional feature, providing additional ripping capabilities for improved versatility in moulding and slicing applications.
How does the vertical rip saw enhance productivity?
The vertical rip saw units integrated into the Slicermac allow for simultaneous moulding and slicing, significantly improving production efficiency in high-volume woodworking environments.
What safety features are included with the Slicermac?
The Slicermac is built with a full safety enclosure that meets CE specifications, ensuring operator safety while reducing noise during high-speed production.
What is the working width capacity of the Slicermac?
The Slicermac can handle a working width of up to 310 mm, making it suitable for larger workpieces in industrial woodworking projects.
Does the Slicermac feature cooling systems for the slicing units?
Yes, the slicing units are equipped with a cooling system, ensuring optimal operating temperatures and preventing overheating during continuous high-speed cutting operations.
Other Information
Spindle Configurations
| Spindle | Image |
| LMC-223(2VM) 2-SPINDLE |  |
| LMC-323(2VMM) 3-SPINDLE |  |
| LMC-423(4VM) 4-SPINDLE |  |
| LMC-523(4VM) 5-SPINDLE |  |
| LMC-523(4VMM) 5-SPINDLE |  |
| LMC-623(4VM) 6-SPINDLE |  |
| LMC-623(4VMM) 6-SPINDLE |  |
| LMC-723(2VM) 7-SPINDLE |  |
| LMC-723(4VMM) 7-SPINDLE |  |
| LMC-823(2VM) 8-SPINDLE |  |
| LMC-823(4VM) 8-SPINDLE |  |
Spindle Configurations
| LMC-223 to LMC-823: | |
| Working width for moulding (at a cutting circle of 163mm) | 230 mm |
| Working height for moulding (at a cutting circle of 163mm) | 10 – 150 mm |
| Working width for VM | 200 mm |
| Working height for VM | 100 mm |
| Number of spindles, min-max. | 2 – 8 |
| Basic motor capacity per spindle | 5.5 KW / 7.5 HP |
| Basic motor capacity of feed | 4 KW / 5 HP / Inverter |
| Spindle speed | 6000 RPM for moulding spindle, 4000 RPM for multiple rip saw spindle |
| Spindle diameter | 40 mm for moulding spindle, 50 mm for multiple rip saw spindle |
| Tool cutting circle (first bottom spindles) min-max. | 125 – 160 mm |
| Max. saw blade cutting circle (1st slicing unit) | 250 mm |
| Max. saw blade cutting circle (2nd slicing unit) | 300 mm |
| Tool cutting circle (top horizontal spindles) min-max. | 112 – 200 mm |
| Tool cutting circle (bottom horizontal spindles) min-max. | 112 – 200 mm |
| Infinitely variable feeding speed controlled by VFD Device | 6 – 24 m/min |
| Feed roller diameter | 140 mm |
| Feed roller width | 50 mm |
| Max. pneumatic pressure for feed rollers | 6 kg/cm² (87psi) |
| Adjustment range for infeed table and edge of jointing fence | 10 mm |
| Adjustment range of vertical spindles (axial) | 30 mm |
| Adjustment range of horizontal spindles (axial) | 20 mm |
| Adjustment range of vertical spindles for slicing units (axial) | 5 mm |
| Length of straightening table | 2 mm |
