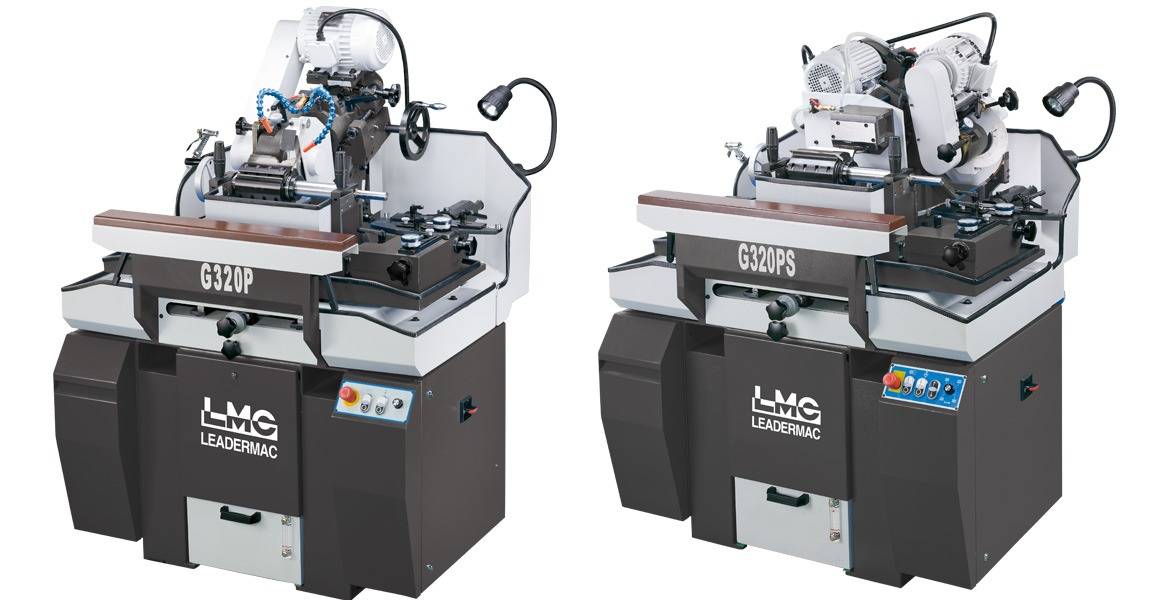

Grindermac G320P/G320PS Tool Grinders
Inquire for more information
The Grindermac G320P/G320PS series is expertly designed for precision knife grinding and sharpening. It’s ideal for creating and maintaining profile-cutters used in decorative strip cutting and other industrial woodworking applications. With high accuracy, adjustable spindle speeds, and minimal need for manual adjustments, these grinders boost production efficiency. Perfect for industrial knife sharpening, this machine offers consistent performance and reduces downtime, making it highly suitable for high-demand woodworking environments.
Key Features of the Grindermac G320P/G320PS Tool Grinders
Technical Specifications of the Grindermac G320P/G320PS Tool Grinders
- Maximum Cutterhead Length: 320 mm (locking collars), 340 mm (hydro locking block)
- Maximum Cutting Circle: 350 mm for profile grinding
- Spindle Speed: 1500-3000 rpm for profile grinding; 3000-6000 rpm for straight knife (G320PS)
- Motor Outputs: 1.5 kW (profile grinding), 0.75 kW (straight knife for G320PS)
- Cooling System Capacity: 36 liters
Performance Features of the Grindermac G320P/G320PS Tool Grinders

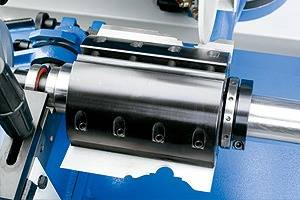

- Versatile Grinding Capability: Suitable for grinding cutterheads with multiple knives (2, 4, 6, 8, or more) without further adjustment.
- Speed Control: Adjustable grinding wheel speeds for various knife types.
- Rotary Type Tracing Rod Assembly: Allows for complex knife profiles.

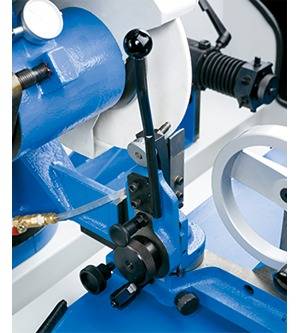

- Curve Shaped Slide: Simplifies angle changes without re-dressing the grinding wheel.
- Two-Direction Arbor Positioning: Quick, calibration-free cutterhead positioning.
- Cooling System: Prevents knife burning and manages debris during grinding.
- Washing Device: Simplifies cleaning of the grinding table.
- Forklift Accessible: Easy to move or lift the machine.
Customization and Optional Features of the Grindermac G320P/G320PS Tool Grinders
- Powered Adjustment: Eliminates manual adjustments, providing enhanced convenience and efficiency in knife grinding operations.

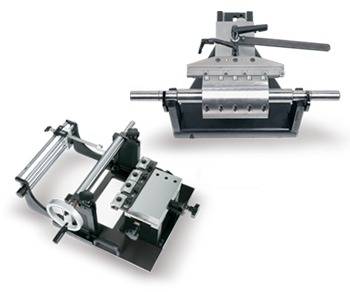

- Tool Calibration Device: Ensures precise calibration of each cutterhead for optimal industrial knife sharpening, resulting in smooth and consistent performance.
Testimonials
No testimonial found
FAQ
What is the purpose of the Grindermac G320P/G320PS series?
The Grindermac G320P/G320PS is designed for precision knife grinding and sharpening, making it ideal for profile-cutters used in decorative strip cutting and industrial woodworking.
Can the Grindermac grinders handle multiple knives at once?
Yes, the Grindermac grinders can grind cutterheads with multiple knives (2, 4, 6, or more), offering versatility for different applications.
What customization options are available for the Grindermac G320P/G320PS?
Optional features include powered adjustment, tool calibration devices, and custom tracing rods for more precise operations.
What is the spindle speed of the Grindermac G320P/G320PS?
The spindle speed ranges from 1500 to 6000 rpm, offering flexibility for profile grinding and knife sharpening.
How does the Grindermac ensure operational efficiency?
With features like the automatic lubrication system and powered adjustments, the Grindermac minimizes downtime and ensures smooth, efficient grinding.
Other Information
Configurations
| MODEL | G320A | G320B |
| Maximum length of cutterhead | ||
| Conventional cutterhead (by nut locking) | 320 mm (12.6″) | 320 mm (12.6″) |
| Hydraulic cutterhead (by hydraulic bushing locking) | 320 mm (12.6″) | 320 mm (12.6″) |
| Max. diameter of cutter | 320 mm (12.6″) | 320 mm (12.6″) |
| Min. diameter of cutter | 125 mm (5″) | 125 mm (5″) |
| Max. knife numbers | 32 | 32 |
| Grinding wheel | ||
| Diameter | 175 mm (6.9″) | 175 mm (6.9″) |
| Bore | 25 mm (1″) | 25 mm (1″) |
| Spindle speed | 3000 rpm Max | 1000~6000 rpm Max |
| Motors | ||
| Grinding wheel arbor | 1.5 Kw (2 HP) | 3.75 Kw (5 HP) |
| Coolant pump | 0.188 Kw (0.25 HP) | 0.188 Kw (0.25 HP) |
| Hydraulic motor | 0.75 Kw (1 HP) | 0.75 Kw (1 HP) |
| Cooling system | ||
| Coolant tank capacity – Max. | 28 liters (6.15 gallons) | 28 liters (6.15 gallons) |
| Coolant tank capacity – Min. | 16 liters (3.5 gallons) | 18.4 liters (4 gallons) |
| Machine Dimensions | ||
| Length | 1905 mm (75″) | 1985 mm (78.1″) |
| Width | 1100 mm (43.3″) | 1645 mm (64.8″) |
| Height | 1500 mm (59″) | 1800 mm (74.8″) |
| Worklamp | 20 w | 20 w |
