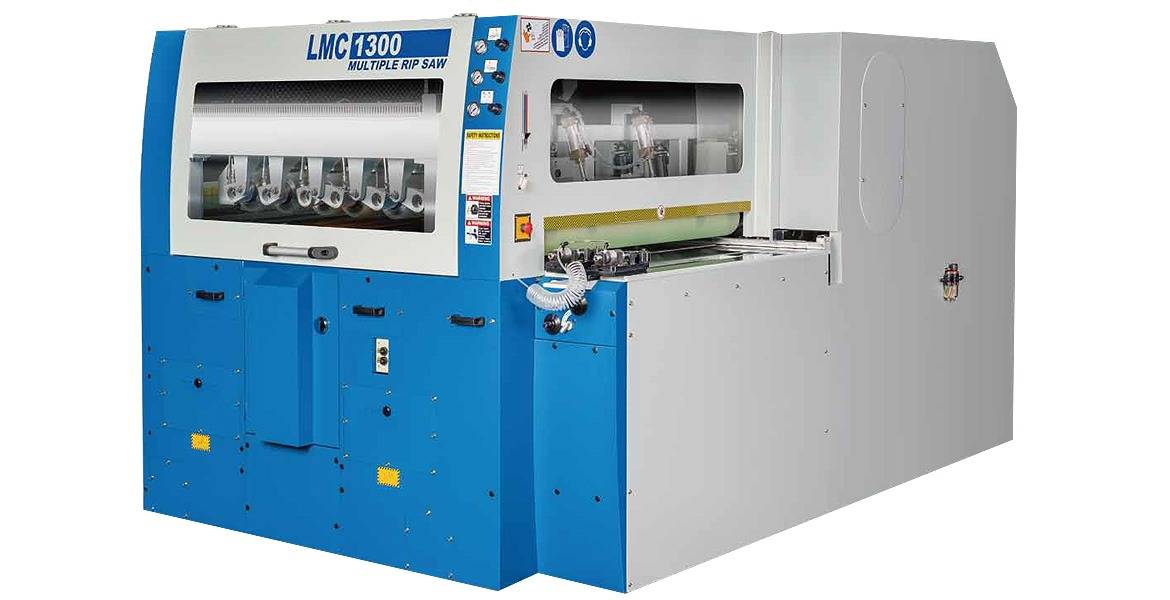

LMC 1300 Multiple Rip Saw
Inquire About High-Efficiency Industrial Rip Saws
The LMC 1300 Multiple Rip Saw by Leadermac is a powerful, precise, and economical rip saw, engineered for heavy-duty industrial woodworking tasks. Compact yet robust, this machine excels at processing panel boards and laminated lumbers, offering versatility and high performance in woodworking production environments. With advanced technology and a space-saving design, the LMC 1300 is the ideal solution for efficient wood cutting in high-volume operations.
Key Features of the LMC 1300 Multiple Rip Saw
Technical Specifications of the LMC 1300 Multiple Rip Saw
- Maximum Width of Cut: 1300 mm (51”), providing versatility for wide wood panels and industrial woodworking tasks.
- Maximum Thickness of Cut: 50 mm, suitable for cutting a range of panel boards and laminated lumbers in high-volume production.
- Saw Blade Diameter: Ø10” with an optional Ø12”, designed for efficient cutting and improved precision in heavy-duty woodworking operations.
- Saw Arbor Diameter: Ø80 mm, ensuring stability and durability during high-speed cutting processes.
- Feed Speed: Variable feed speed from 6 to 15 M/min, with an optional upgrade to 24 M/min for high-speed wood processing in large-scale operations.
- Saw Blade Speed: 3200 RPM, providing high-performance cutting suitable for industrial woodworking environments.
- Saw Drive Motor: Equipped with a 75 HP motor, with an optional 100 HP upgrade for handling heavy-duty cutting tasks.
- Feed Roller Elevation Motor: 1 HP, ensuring smooth and precise movement of the feed rollers for optimal cutting performance.
- Feed Roller Drive Motor: 7.5 HP, delivering consistent and reliable feeding for continuous wood cutting operations.
- Net Weight: 3800 kgs, designed for heavy-duty performance and industrial durability.
- Gross Weight: 4200 kgs, ensuring the machine’s robustness in demanding woodworking environments.
- Packing Dimensions: 3250(L) x 2350(W) x 2100(H) mm, for ease of transport and installation in industrial woodworking facilities.
Performance Features of the LMC 1300 Multiple Rip Saw

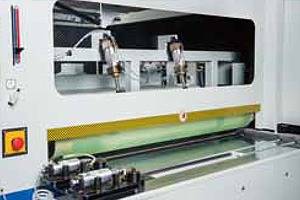

- Top Rollers: Equipped with 6 pneumatic pressure rollers on top, ensuring smooth and stable material feeding during high-speed cutting operations.
- Bottom Feed Rollers: Features 4 powerful bottom feed rollers, providing consistent infeed movement for precise and efficient cutting of wood panels.
- Anti-Rebound Fence: The infeed anti-rebound fence enhances operator safety, ensuring smooth and controlled material handling during operation.

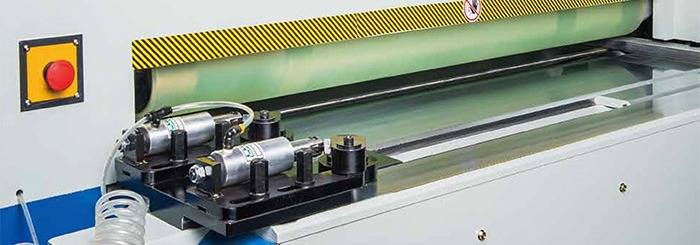

- Infeed Table: Includes 1 auxiliary roller and 2 side pressure wheels, facilitating smooth material feeding and maintaining workpiece alignment.
- Durability: Built with a hard-chromed table surface for maximum resistance and durability, ensuring long-lasting performance in industrial woodworking environments.
- Dust Collection System: Includes 3 central dust hoods (6” each), providing effective dust collection for a cleaner working environment.
- Inverter Control: Features infinitely variable feed speed control, allowing operators to adjust feed speeds for optimal cutting performance.
- Powerful Motor: Equipped with a 75 HP saw drive motor (optional upgrade to 100 HP), delivering the power required for heavy-duty cutting tasks in large-scale production.
- Fast Feeding Speed: Capable of feeding speeds up to 24 m/min (optional), ensuring high-speed cutting for efficient industrial operations.
- Rigidity and Stability: Constructed for maximum rigidity and stability, ensuring consistent and accurate performance during continuous high-volume production.
- Safety Enclosure: Comes with a full safety enclosure that provides both noise reduction and operator safety, ensuring compliance with industrial safety standards.
- Convenient Setting: The machine features powered elevation of feed rollers, allowing for easy setup and adjustments.
- Easy Adjustment: Front-mounted pressure gauges provide operators with quick and convenient control over pressure settings.

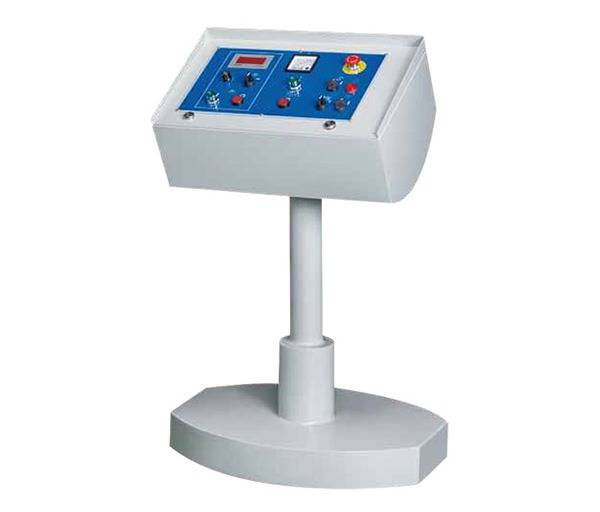

- Remote Control Stand: Includes a remote control stand for greater operational convenience and ease of use in busy production environments.
Customization and Optional Features of the LMC 1300 Multiple Rip Saw
Saw Drive Motor Power:
Standard: 75 HP, delivering the power needed for heavy-duty cutting tasks in industrial woodworking operations.
Optional Upgrade: 100 HP, providing increased power for high-performance cutting in large-scale production environments.
Saw Blade Diameter:
Standard: Ø10”, ideal for precise wood panel cutting in medium- to large-sized woodworking tasks.
Optional Upgrade: Ø12”, offering greater cutting capacity for thicker and more demanding wood cutting applications.
Feed Speed:
Standard: 6 to 15 M/min with infinitely variable control, allowing operators to adjust speeds based on material type and desired cutting precision.
Optional Upgrade: 24 M/min, providing faster feed speeds for high-efficiency cutting in high-volume production environments.
Testimonials
No testimonial found
Frequently Asked Questions About the Leadermac LMC 1300 Multiple Rip Saw
What is the maximum feed speed of the LMC 1300 Multiple Rip Saw?
The Leadermac LMC 1300 Multiple Rip Saw offers a standard feed speed of 6 to 15 M/min, with an optional upgrade to 24 M/min for high-speed cutting in industrial woodworking operations.
Can the saw drive motor be upgraded for higher performance?
Yes, the saw drive motor comes standard at 75 HP, but you can opt for the 100 HP upgrade to handle more demanding heavy-duty cutting tasks in high-volume wood production environments.
What is the difference between the standard and optional saw blade diameters?
The standard Ø10” saw blade is ideal for general wood panel cutting. The optional Ø12” saw blade increases cutting capacity, making it perfect for thicker wood materials in industrial applications.
How does the pneumatic pressure system improve feeding performance?
The pneumatic pressure system on the top rollers ensures smooth and stable feeding, adjusting the pressure to maintain control and precision during high-speed cutting, even with varied material thicknesses.
What safety features are included in the LMC 1300 Multiple Rip Saw?
The machine is equipped with a full safety enclosure, which provides both noise reduction and a chip guard, ensuring operator safety while complying with industrial safety standards.
What materials can the LMC 1300 Multiple Rip Saw handle?
The LMC 1300 is designed to process a variety of wood materials, including panel boards and laminated lumber, making it versatile for high-volume production in industrial woodworking.
Other Information
Configurations
| Maximum width of cut | 1300 mm (51”) |
| Maximum thickness of cut | 50 mm |
| Sawblade diameter | Ø10” (12” Opt) |
| Saw arbor diameter | Ø80 mm |
| Feed speed (Infinitely variable) | 6 -15 M/min (24 M/min Opt) (inverted motor) |
| Saw blade speed | 3200 RPM |
| Saw drive motor | 75 HP (100 HP Opt) |
| Feed roller elevation motor | I HP |
| Feed roller drive motor | 7.5HP |
| Net weight | 3800 kgs |
| Gross weight | 4200 kgs |
| Packing dimensions | 3250(L) x 2350(W) x 2100(H) |
