U-power 4-sided moulder

Inquire about high efficiency 4-sided-moulders

Introducing the Leadermac U-Power 4-Sided Moulder—a high-efficiency machine designed for precision woodworking and industrial moulding applications. Engineered with automation in mind, the U-Power series delivers superior surface finishes without sanding, enhancing production speed and quality for woodworking professionals.

Contact Us

Key Features of the U-Power 4-Sided Moulder

Spindle Speed: Up to 12,000 RPM for precision and stability.

Feed Speed: Up to 30 meters/min for increased productivity.

HSK Tool System: Quick changes and enhanced performance.

  • High Feed Rate: Boost productivity in industrial woodworking.

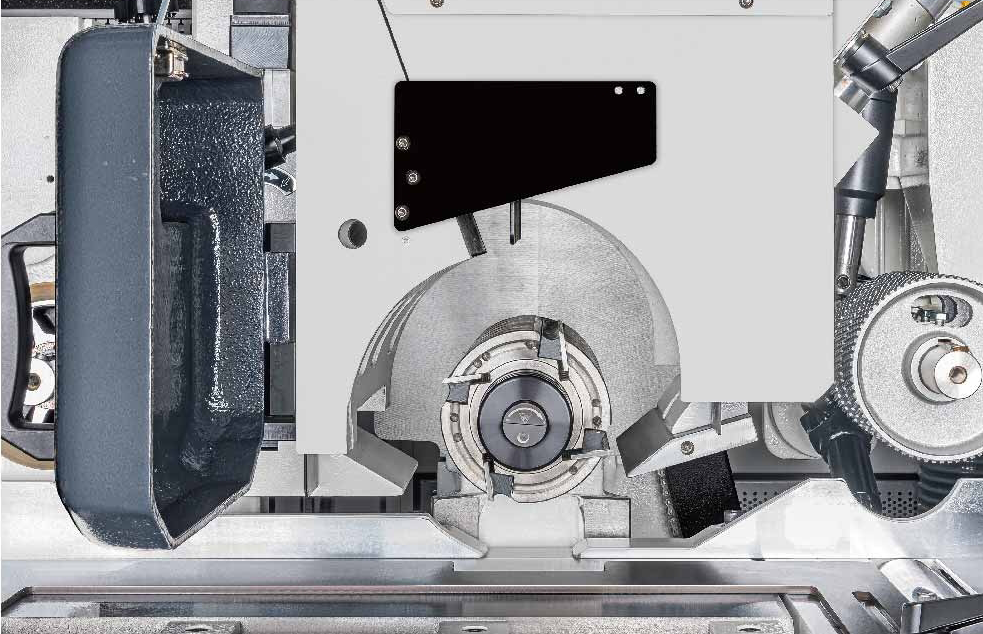

  • Advanced Spindle: Precision moulding with minimal vibration.
  • User-Friendly Controls: Simplify adjustments with an auto setworks system.
  •
  • Spindle Configurations
  • Pneumatic Pressure Rollers
  • Quick-Release Spindle Nuts
compactDownload

Play Video

FAQ

The U-Power Moulder boosts efficiency in woodworking with advanced automation for consistent, high-quality results. efficiency.

It ensures precision machining with high speeds, reducing downtime and improving surface quality.

Spindle configurations, tool adapters, and pneumatic rollers tailor the U-Power to specific moulding applications.

Yes, with feed speeds up to 30 meters/min, the U-Power is ideal for large-scale industrial operations.

Precision spindles and advanced machining reduce the need for post-processing, delivering a smooth finish.

The U-Power 4-Sided Moulder is ideal for industries that require high-speed precision moulding, such as furniture manufacturing, cabinet production, architectural mouldings, and wood product manufacturers. These industries benefit from its ability to deliver consistent, high-quality results, reduce production time, and minimize material waste. Its customization options make it versatile for a wide range of industrial woodworking applications.

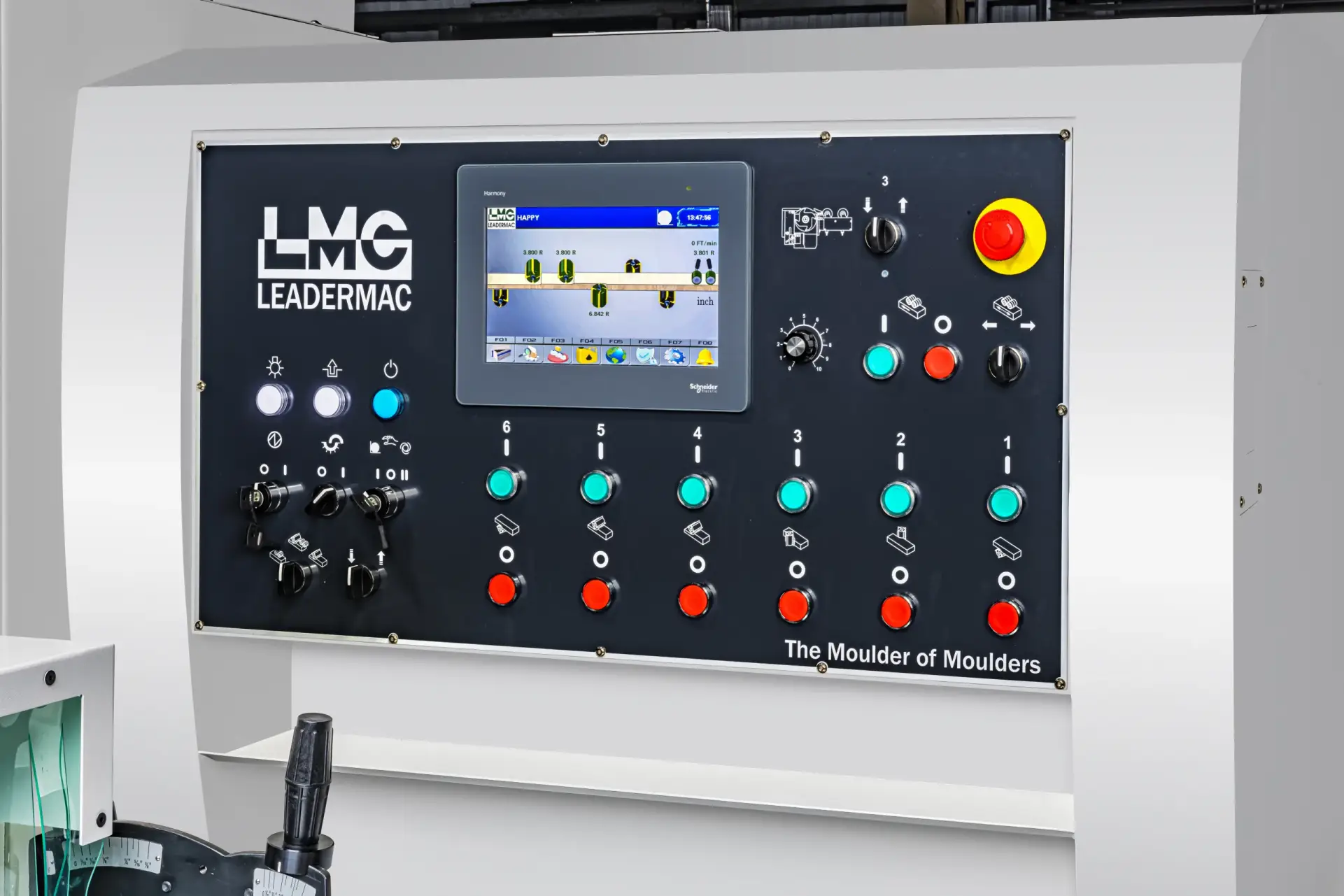

Controllers
Proset Controller
PROSET CONTROLLER
    • 19″ panel PC

    • Product library (1000 sets)

    • Knife library (10,000 sets)

    • Automatic machine quick setup

    • Easy and powerful functionality

    • Workpiece settings on any axis as desired

    • The width and thickness settings can be easily set using the programmable controller

    • All axes are equipped with ballscrews and rotary encoders for feedback position control, providing high positioning accuracy and better cutting quality

  • The desired values for width and thickness can be conveniently pre-set and are displayed on an LED readout
Easyset Controller
EASYSET CONTROLLER (OPT.) Touch Screen Control
    • 5.7″ HMI (Memory 200 sets)

    • Automatic machine quick setup

    • Easy and powerful functionality

    • Workpiece settings on left and top axes as desired

    • The width and thickness setting can be easily set using the programmable controller

  • The desired values for thickness are displayed on and LED readout
Smartset Controller
SMARTSET CONTROLLER(OPT.)
Touch Screen Control
    • 9″ HMI (Memory 300 sets)

    • Automatic machine quick setup

    • Easy and powerful functionality

    • Setworks on any axis as desired

    • The Motorized Axes: derived by inverter, transmitted by ball screw, feedback by encoder

  • The desired values for radial and axial are displayed on HMI.
STANDARD EQUIPMENTStandard Machine SpecsOptional Specs
Number of Heads / Spindles: Min-Max5 to 9Any Head Configuration is available
Working Width (With a Tool Cutting Circle of 125 mm)15 – 230 mmUp to 300 mm
Working Thickness (With a Tool Cutting Circle of 125 mm)10 – 150 mmUp to 200 or 250 mm
Basic Spindle Motor Capacity10 / 15 HPUp to 15 HP (11 KW) (1st Bottom Spindle), 20 HP (15 KW) (Vertical Spindle), 20 HP (15 KW) (Top and 2nd Bottom Spindle)
Spindle Diameter40 mm50 mm, 1 13/16″ / 2 1/8″, HSK 85W
Spindle Speed6000 RPM7200 RPM
Tool Cutting Circle, First Bottom Spindle: Min-Max125 – 203 mm93 – 203 mm (when option HSK 85W Spindle)
Tool Cutting Circle, Vertical Spindle: Min-Max125 – 203 mm93 – 203 mm (when option HSK 85W Spindle)
Tool Cutting Circle, Horizontal Spindle: Min-Max125 – 203 mm93 – 203 mm (when option HSK 85W Spindle)
Feed Motor5 HP / inverter10 / 15 / 20 HP / inverter
Feed Speed, Infinitely Variable By Frequency (VFD) Driven30 m/min
Top Feed Rolls – Diameter140 mm
Top Feed Roll Width – Multiple Rolls Stacked on Shafts50 mm / Roll
Bottom Feed Roll WidthFull Width
Pneumatic Pressure for Feed Rollers: Max6 bar
Adjustment Range for Infeed Table10 mm
Adjustment Range of Vertical Spindles (Axial)80 mm
Adjustment Range of Horizontal Spindles (Axial)40 mm
Length of the Infeed / Straightening Table1.8 M0.71 / 1.4 / 2.5 / 3 M
Diameter of Dust Hoods for Vertical & Horizontal SpindlesØ150 mm
Digital Readouts on All Axis of All HeadsStd.
Full Sound and Safety EnclosureStd.
Motorized Vertical Adjustment of Feed BeamStd.
Lateral Pressure Multiple Roller Opposite First Right SpindleStd.
Chainless Cardan Shaft Feed SystemStd.
SpindleImage
LMC-523 5-SPINDLESpindle
LMC-623 6-SPINDLESpindle
LMC-723 7SPINDLESpindle
LMC-823 8-SPINDLESpindle
LMC-923 9-SPINDLESpindle
Optional EquipmentDetails
To CEHSK 85W spindle 8,000 RPM
Grooved Bed (for running very short materials)HSK 85W spindle 10,000 RPM
Opposed Side HeadsHSK 85W spindle 12,000 RPM
Universal SpindleAdapters for standard tools on vertical spindle (when order HSK 85W spindle)
Rip Saw Section with up to 50 HP (37.5 kw)Adapters for standard tools on horizontal spindle (when order HSK 85W spindle)
Left (Opposite) Hand FeedQuickly releases spindle nut
Pneumatic Pressure Shoes for Top SpindleSIKO LED Digital Readouts for the Chip Breaker Shoes for top spindle
Anti-Kickback FingersSIKO LED Digital Readouts for the Pressure for top spindle
