Description

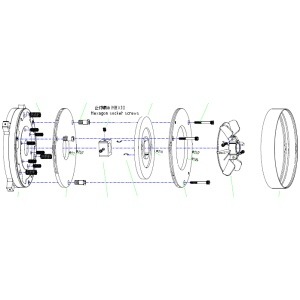

This complete brake unit (1102M) arrives pre-built and pre-adjusted—ready to drop into the motor or shaft housing specified in your parts list. It includes the caliper body, friction stack, electromagnets and mounting flange, restoring factory-fresh braking force in one swap.
Key features
-
Rated for 20 horse-power motor drives (match to OEM spec)
-
Pre-installed electromagnets and friction plates—no bench assembly required
-
Factory-set air-gap and spring pressure for consistent, repeatable braking torque
-
Four-bolt mounting face matches the original housing pattern
-
Ships with light protective oil film; remove and fit straight out of the box
Specifications
| Item | Value |
|---|---|
| Part number | 1102M |
| Rated motor size | 20 HP |
| Configuration | Complete brake assembly (electromagnets, friction stack, hub) |
| Mounting | OEM four-bolt flange (check hole spacing before install) |
| Electrical data | Same coil voltage and duty cycle as original brake (verify nameplate) |
A turnkey brake solution that keeps high-speed woodworking-machinery safe and supports reliable woodworking-tooling change-overs shift after shift.
