Description

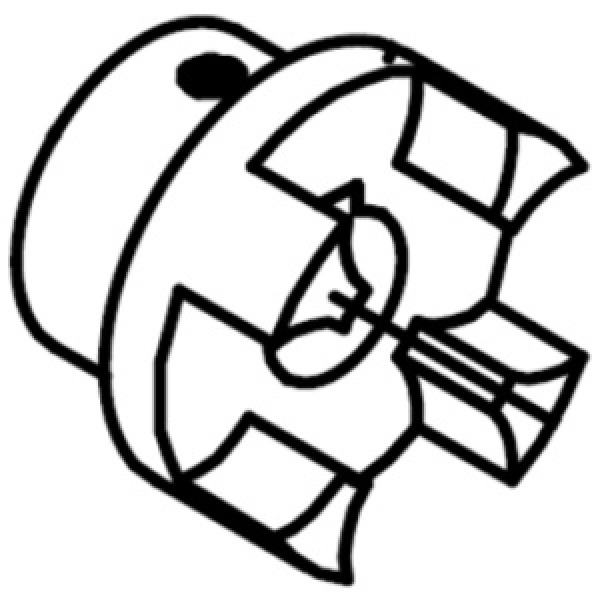

Precision-machined flexible coupling (Part 3063) designed to absorb minor mis-alignment while transmitting full torque from motors to feed rollers, cutter-heads or conveyor drives in heavy-duty woodworking machines.
Key features
-
Twin-hub design with elastomer insert damps vibration and shock-loads
-
Precision-bored steel hubs ensure concentric running at high RPM
-
Clamp-style fixing with cap-screws for quick, secure installation
-
Oil- and solvent-resistant polyurethane spider (replaceable)
-
Rated for up to 6 000 rpm and 40 Nm torque (check machine manual)
Specifications
-
Part number: 3063
-
Coupling style: jaw-type flexible coupling
-
Hub material: high-strength carbon steel, black-oxide finish
-
Insert material: polyurethane (shore 98A)
-
Bore sizes: pilot-bored Ø25 mm × Ø25 mm (custom re-boring possible)
-
Max torque: 40 Nm Max speed: 6 000 rpm
-
Overall length: 60 mm Outside diameter: 50 mm
-
Operating temp: –30 °C … +90 °C
A robust spare that keeps woodworking-machinery drive trains running smoothly and your woodworking-tooling lines at full productivity.
