Description

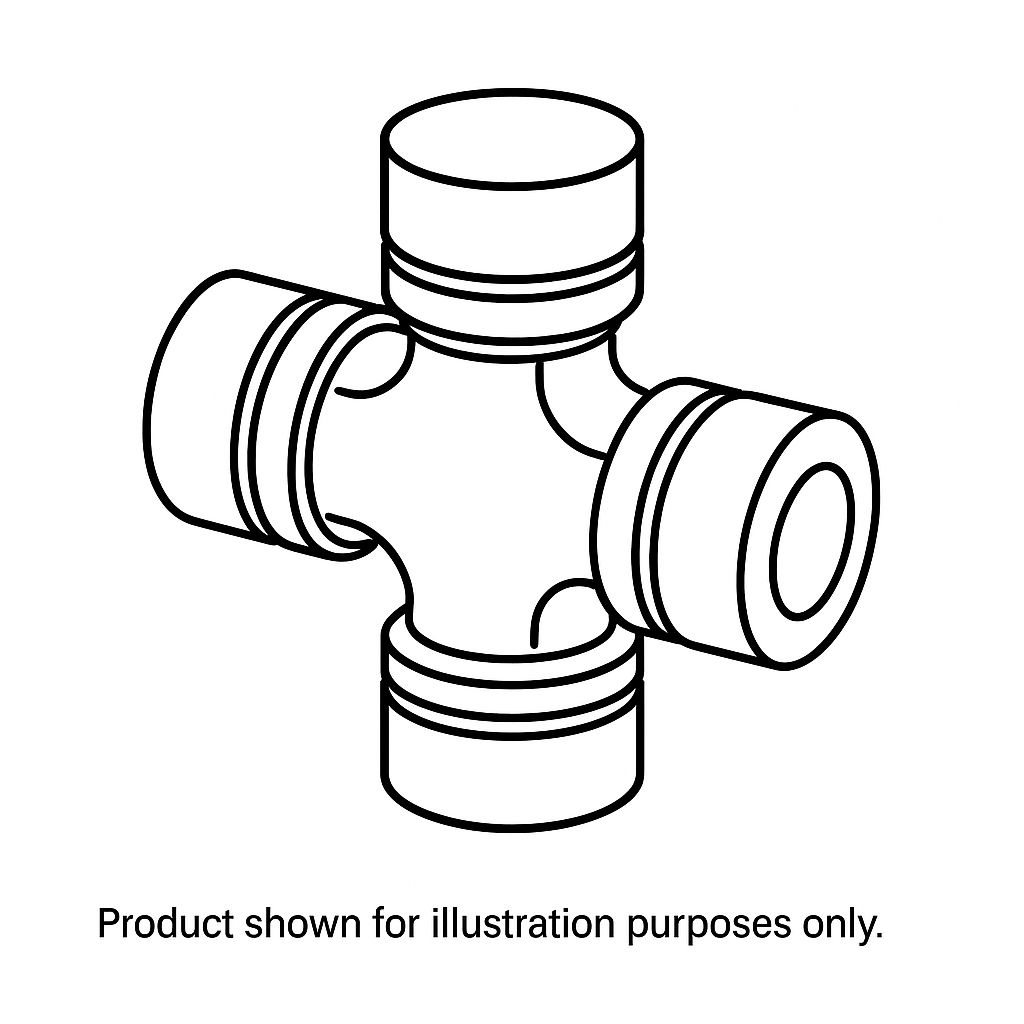

Designed as the heart of U-Joints 0415B and 0386B, this Ø25 × 65 mm cross bearing (Part 0327B) restores smooth, backlash-free rotation in rise-and-fall shafts, feed-roller drives and other high-load mechanisms on heavy-duty woodworking machines.
Key features
-
Ø25 mm trunnions with precision-ground needle-roller journals
-
65 mm overall span fits U-Joint housings 0415B & 0386B (check manual)
-
Case-hardened alloy steel for high wear and shock resistance
-
Grease grooves and seal caps keep lubrication where it’s needed
-
Supplied pre-greased and ready for press-fit installation
Specifications
-
Part number: 0327B
-
Fits: Universal Joint 0415B & 0386B (cross reference)
-
Trunnion diameter: 25 mm
-
Overall width (span): 65 mm
-
Bearing type: needle-roller cross bearing
-
Material: case-hardened alloy steel, HRC 58–62
-
Seal type: nitrile O-ring & dust cap
-
Max rpm: 3 600 (continuous)
-
Operating temp: –30 °C … +120 °C
Keeps critical drives inside your woodworking-machinery running smoothly with minimal downtime during routine servicing.
