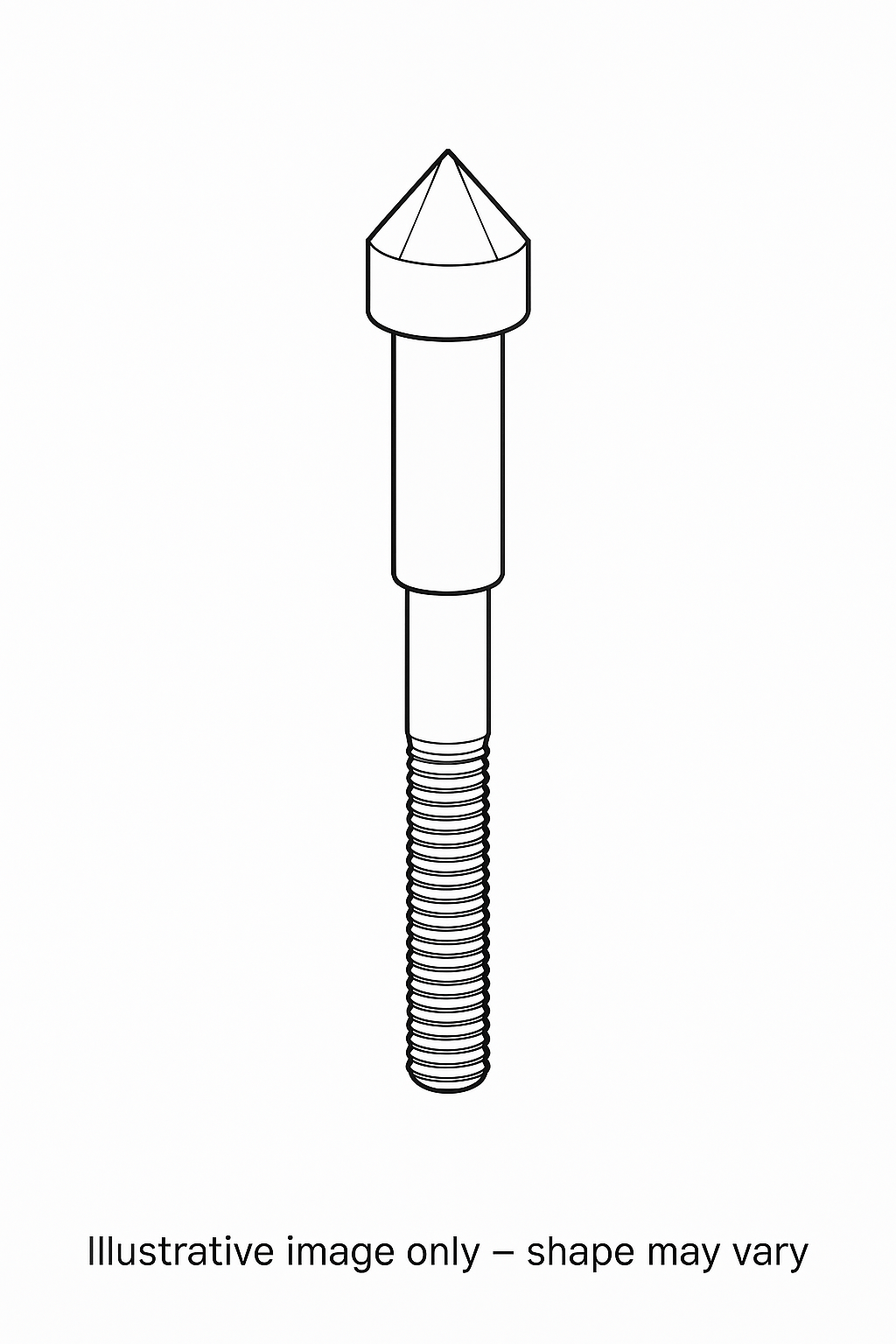

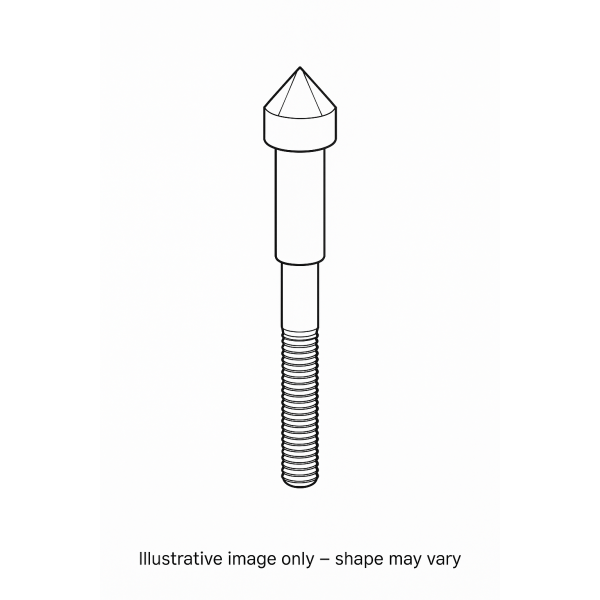

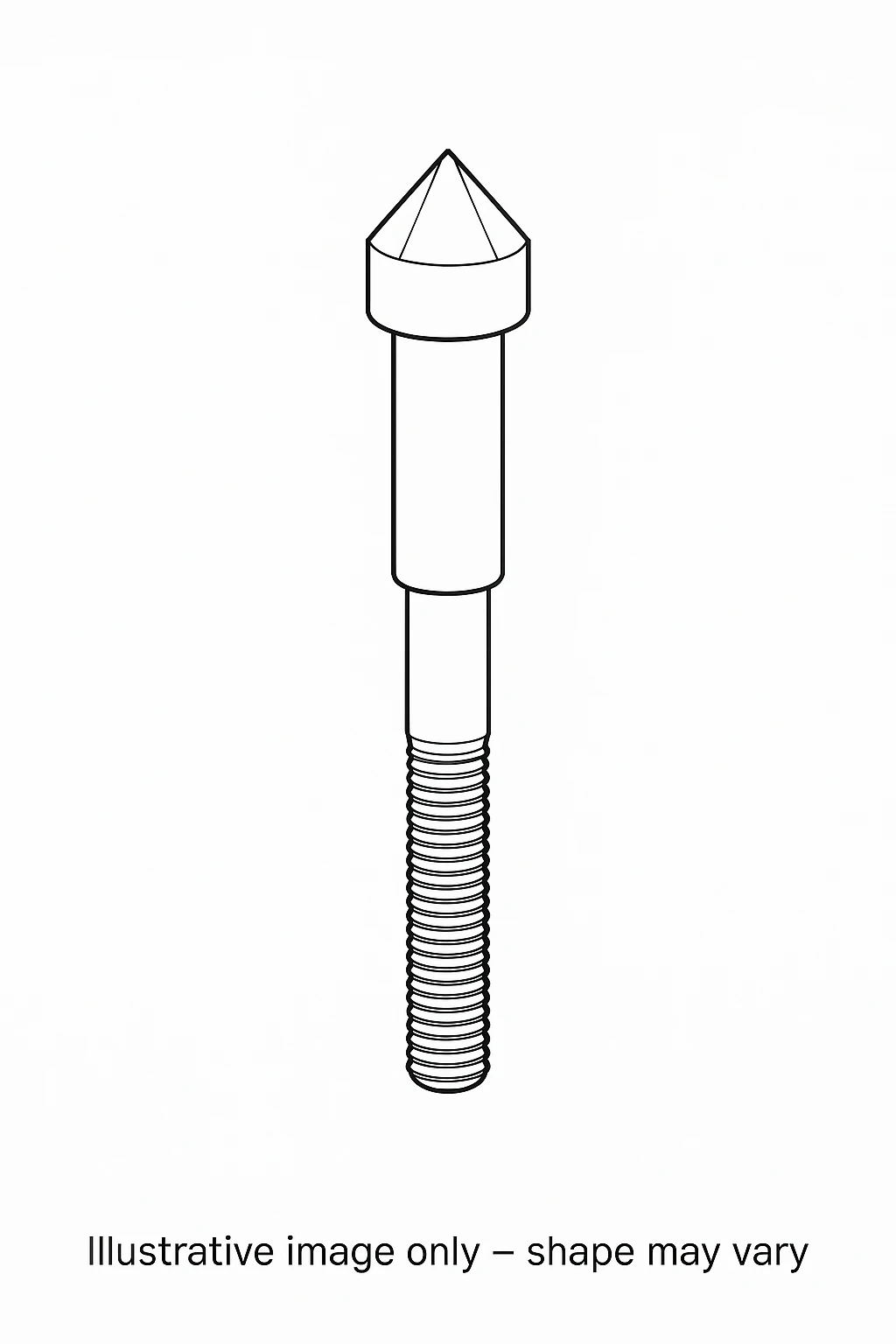

Diamond Wheel Dressers – Multi-Fit Options for Wadkin & Weinig Grinders

Description

Choose from four OEM-style diamond dressers that drop straight into the tool holder on popular Wadkin and Weinig profile grinders. Each unit carries a premium natural diamond tip brazed to a hardened steel shank, restoring a concentric, free-cutting face on vitrified or CBN wheels so your knives grind cool and true.

Available types

Option in dropdown	Typical machine fit	Diamond size	Shank Ø / Length*
For Wadkin NV & Autool	Wadkin NV, Autool	0.5 ct	Ø12 × 50 mm
For Wadkin NXU Silhouette & Mirage	Wadkin NXU, Silhouette, Mirage	0.5 ct	Ø12 × 60 mm
For Earlier Weinig	Weinig R925 / R960 pre-2000	0.4 ct	Ø10 × 50 mm
For Weinig Rondomat 960	Weinig R960 (new)	0.5 ct	Ø12 × 60 mm

*Shank can be re-ground to suit custom holders.

Shared features

• Natural single-point diamond for long service life

• Brazed to a precision steel shank—no solder cracks under heat

• Opens glazing and restores true roundness on vitrified, resin, CBN or diamond wheels

• Rotate the tool periodically to expose fresh facets and maximise life

• Supplied in a protective tube to prevent impact damage in the toolroom

Specifications (all models)

• Diamond grade: natural, faceted, 0.4–0.5 ct

• Recommended wheel surface speed: ≤ 4 500 rpm

• Compatible abrasives: AlOx, SiC, CBN, diamond

• Operating temp: 0 – 80 °C (ambient)

• Part codes: see dropdown (autofills in cart/checkout)

A must-have accessory that keeps your grinder’s wheel—and therefore your woodworking-tooling edges—working at peak efficiency on busy woodworking-machinery lines.
