Description

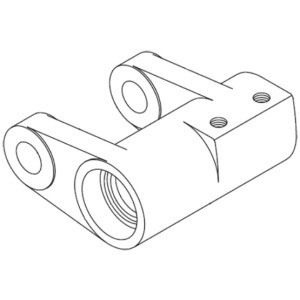

This replacement unit combines the roll pipe and right-hand bearing block in one factory-aligned assembly. The pipe screws into the block’s female thread, while the twin lugs drop straight onto the machine’s pivot bolts, restoring smooth vertical travel and even feed pressure.
Key features
-
Threaded pipe-to-block fit No press work—just screw the shaft home and lock it.
-
Twin-lug bearing block Pre-bored lugs match the OEM pivot-bolt centres.
-
Ground pipe OD Runs concentrically in the opposite bearing seat.
-
Top grease port Ready-tapped for routine lubrication.
-
Direct drop-in whenever your parts list specifies 1705 (right).
Specifications
| Item | Value |
|---|---|
| Part number | 1705 |
| Orientation | Right-hand assembly (viewed from in-feed) |
| Pipe engagement | Female-threaded bore in bearing block |
| Lug hole centres | OEM dimension—verify on removed block |
| Lubrication port | Grease nipple M8 × 1 (supplied) |
| Materials | Cast-steel block, seamless steel pipe |
