Description

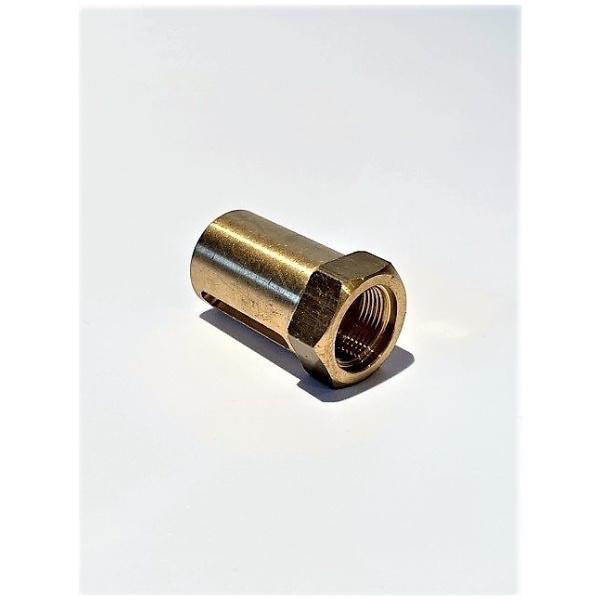

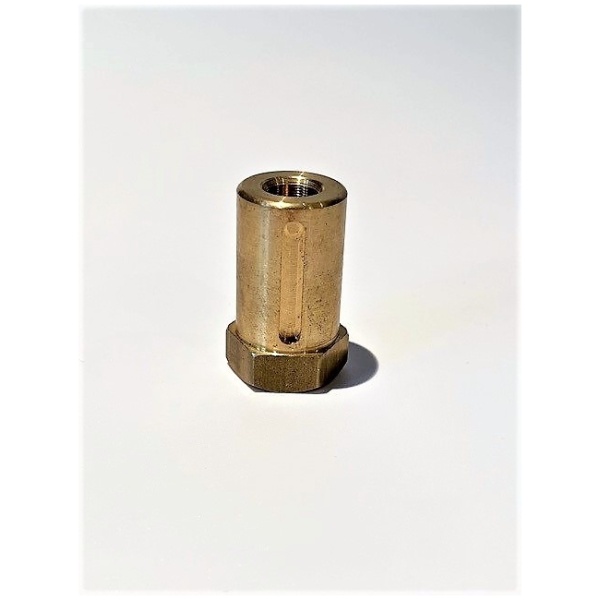

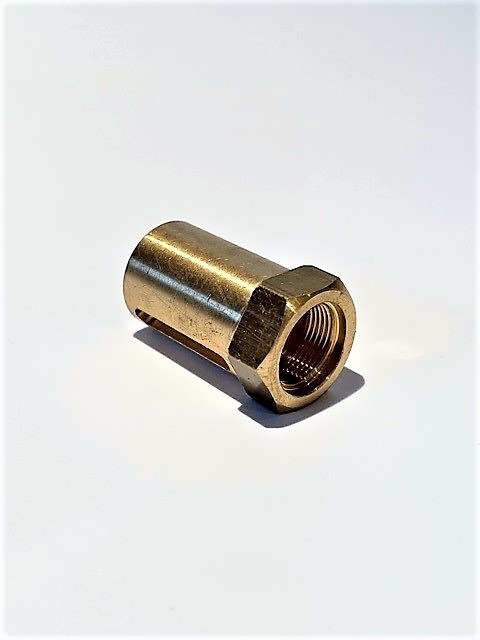

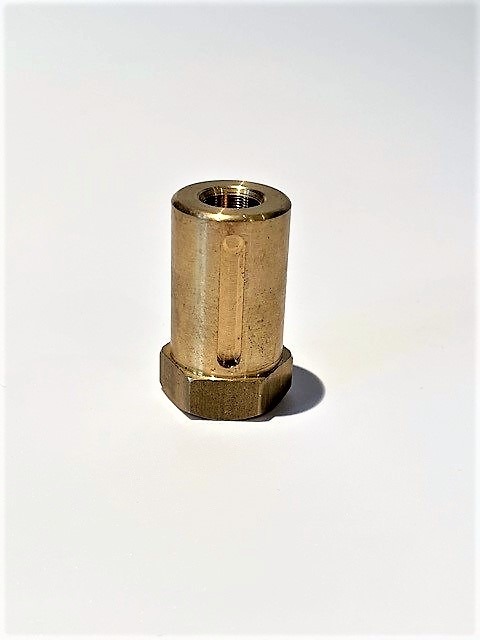

Fitted to the side of the jointer assembly, this nut engages the fine-thread adjusting bolt and locks the cutter-head support plate in position. Replacing a worn nut restores smooth, backlash-free knife setting.
Key features
-
Genuine Leadermac spare – matches the thread and seating pocket in the original jointer block.
-
Machined from solid brass for gall-free movement against the steel screw.
-
Includes cross-drilled lubrication port exactly as per OEM design.
-

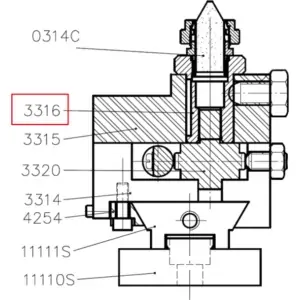

Drops straight in when your parts list specifies 3316 (see red box in diagram).
-
No machining or shimming required—reuse the existing adjusting screw.
Specifications
| Item | Value |
|---|---|
| Part number | 3316 |
| Component | Brass adjusting nut for jointer head block |
| Material | Brass (OEM grade) |
| Thread profile | Matches factory adjusting screw (verify on removal) |
| Application | Leadermac jointer / straight-knife setting unit |
A small yet critical part that keeps the jointer head accurately positioned, supporting precise woodworking-tooling results on every run.
