Feed Roller – 110x50x35mm Asymmetric | Podajalnik

Description

The Podajalnik 110x50x35mm feed roller features an asymmetric aluminium core, rubberized with soft white 50±5 ShA rubber. Designed for consistent performance in power feeders, this roller delivers excellent grip without leaving any marks on the wood.

Its asymmetric structure provides additional support in demanding applications, making it ideal for precise timber handling. We also offer roller renewal and alternative rubber mixtures upon request.

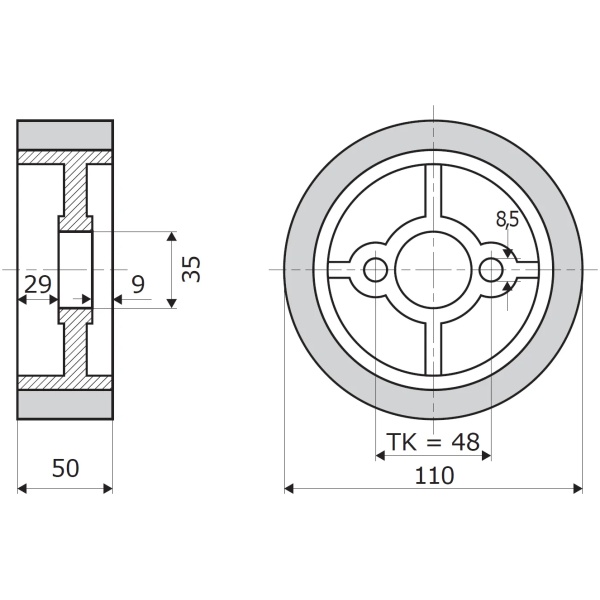

Technical Specifications:

• Core Diameter (D): 82 mm

• Final Diameter with Rubber (D1): 110 mm

• Core Length (L): 50 mm

• Rubber Length (L1): 50 mm

• Bore (ƒå): 35 mm

• TK (Fixing screw hole centres): 48 mm

• Keyway: N/A
