Asymmetric Universal Feed Roller – 120x40x35mm – White 50 ShA

Description

The 120x40x35mm asymmetric universal feed roller features an aluminium core with soft white 50±5 ShA rubber, providing superior grip without marking timber. Designed for power feeders, the asymmetric design enhances contact stability for precision material handling, especially on non-uniform surfaces.

This roller is ideal for power feed upgrades or replacements. Custom rubber mixes and bore/keyway adjustments available upon request.

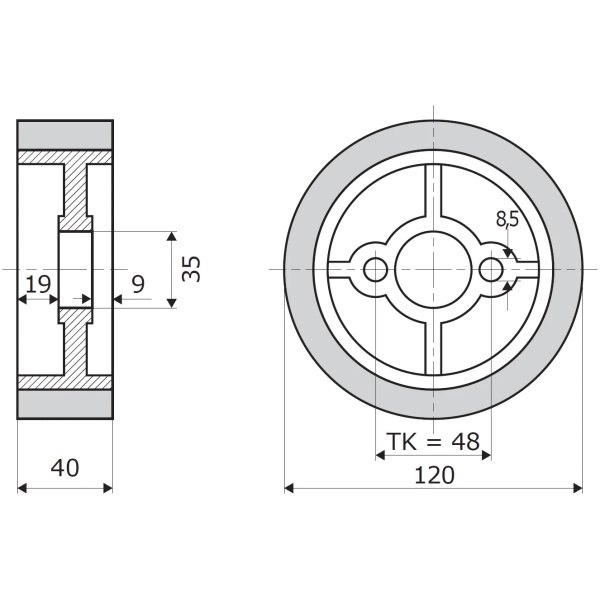

Technical Specifications:

• Core diameter (D): 82mm

• Final diameter with rubber (D1): 120mm

• Core length (L): 40mm

• Rubber length (L1): 40mm

• Bore (ƒå): 35mm

• TK (fixing screw hole centres): 48mm

• Keyway: N/A
