Description

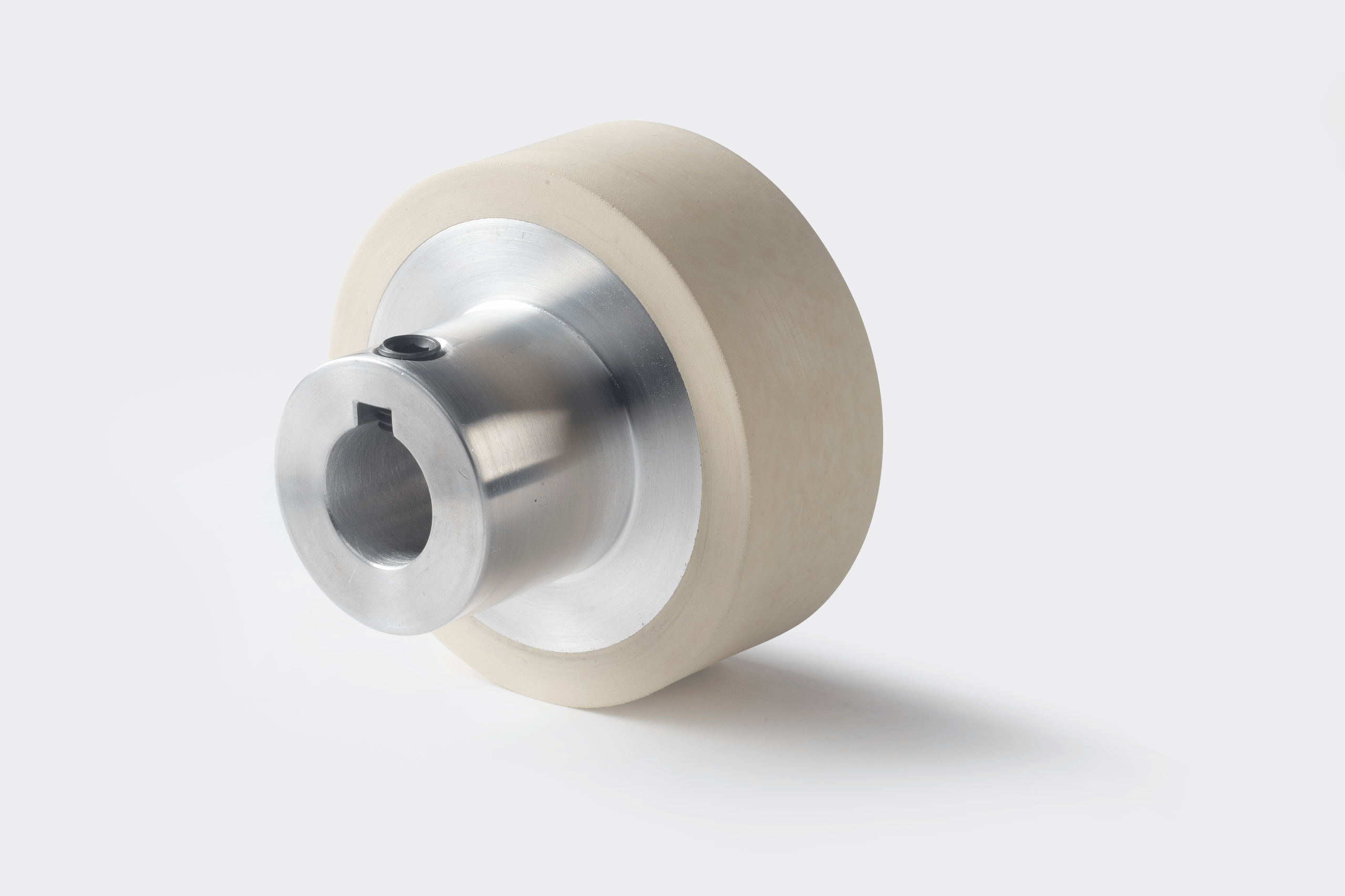

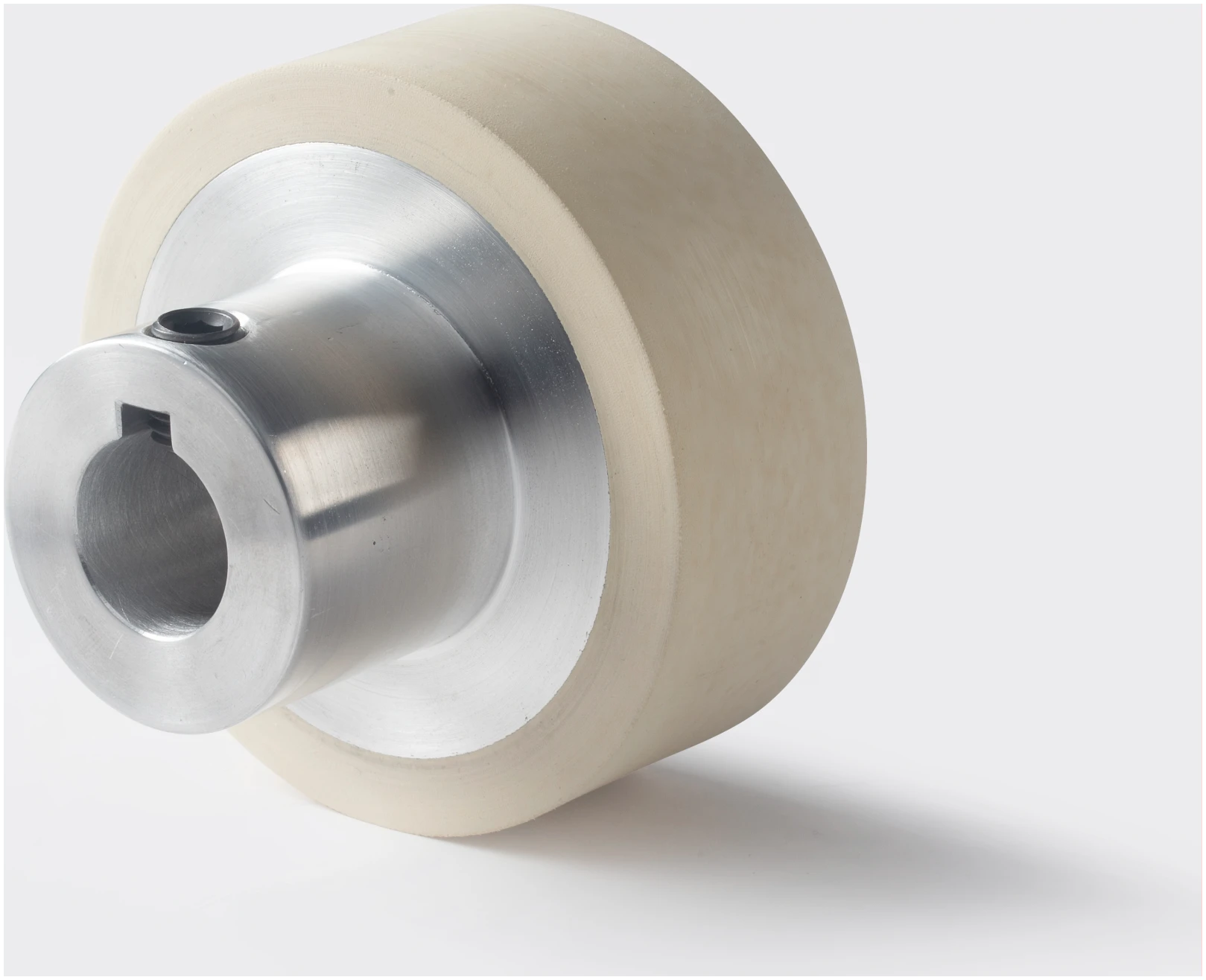

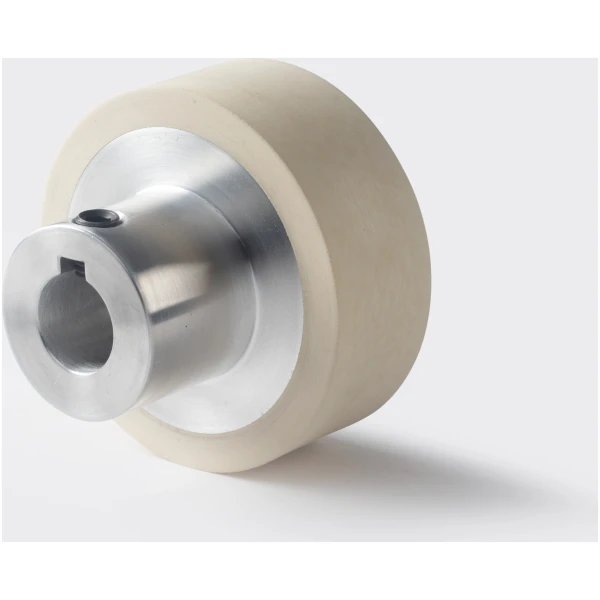

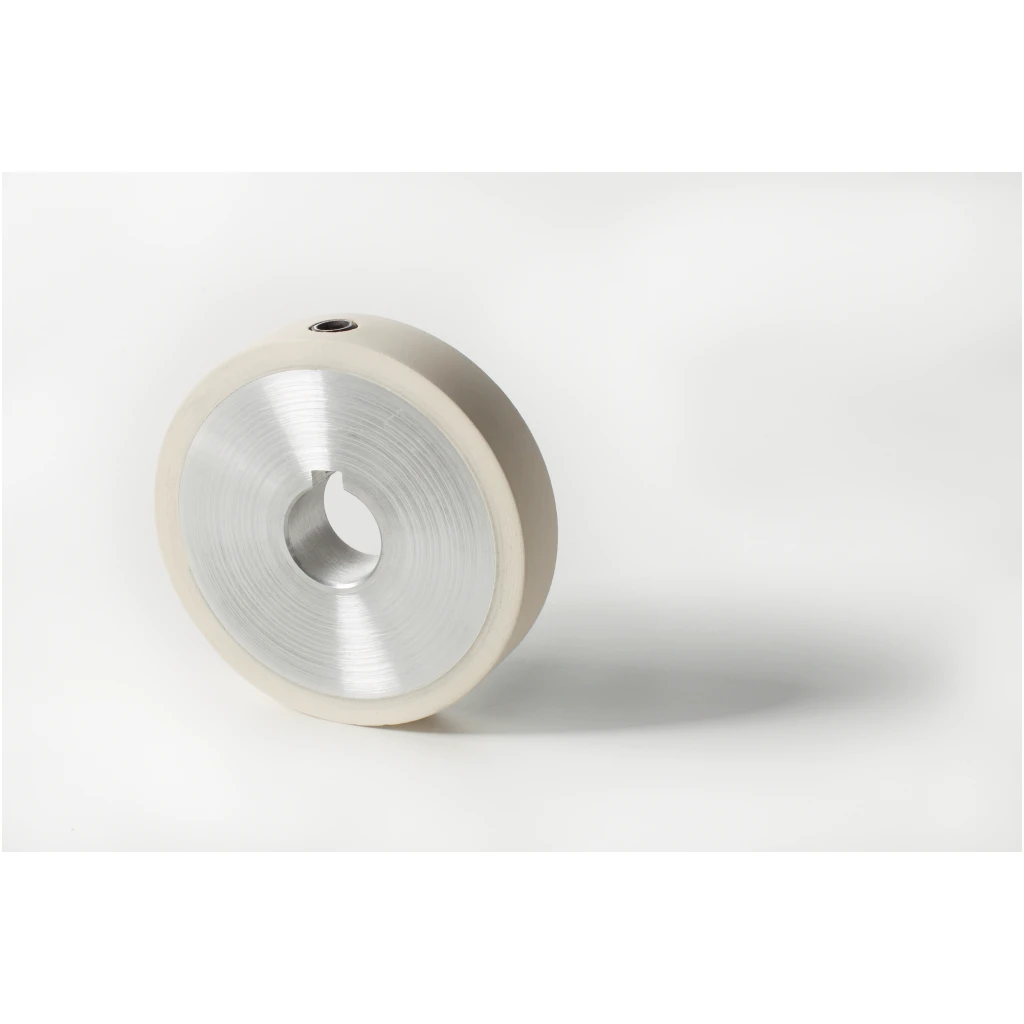

The SCM Windor 100-22-25 Feed Roller is built with a lightweight aluminium core and coated in white 60±5 ShA rubber. This roller delivers excellent grip, long-term durability, and a non-marking surface — ideal for smooth material feed in SCM woodworking machines. With a 100mm diameter, 22mm rubber width, and 25mm bore, it’s well-suited for precise feed control in compact setups.
Need something tailored? We offer roller refurbishment and custom rubber compounds — just send us an enquiry.
Technical Specifications:
-
Roller Diameter (D1): 100 mm
-
Kernel Length (L): 62 mm
-
Rubber Length (L1): 22 mm
-
Bore (Č): 25 mm
-
Keyway Width (U): 8 mm
-
Item Number: 111-0191
-
Net Weight: Not specified
