Description

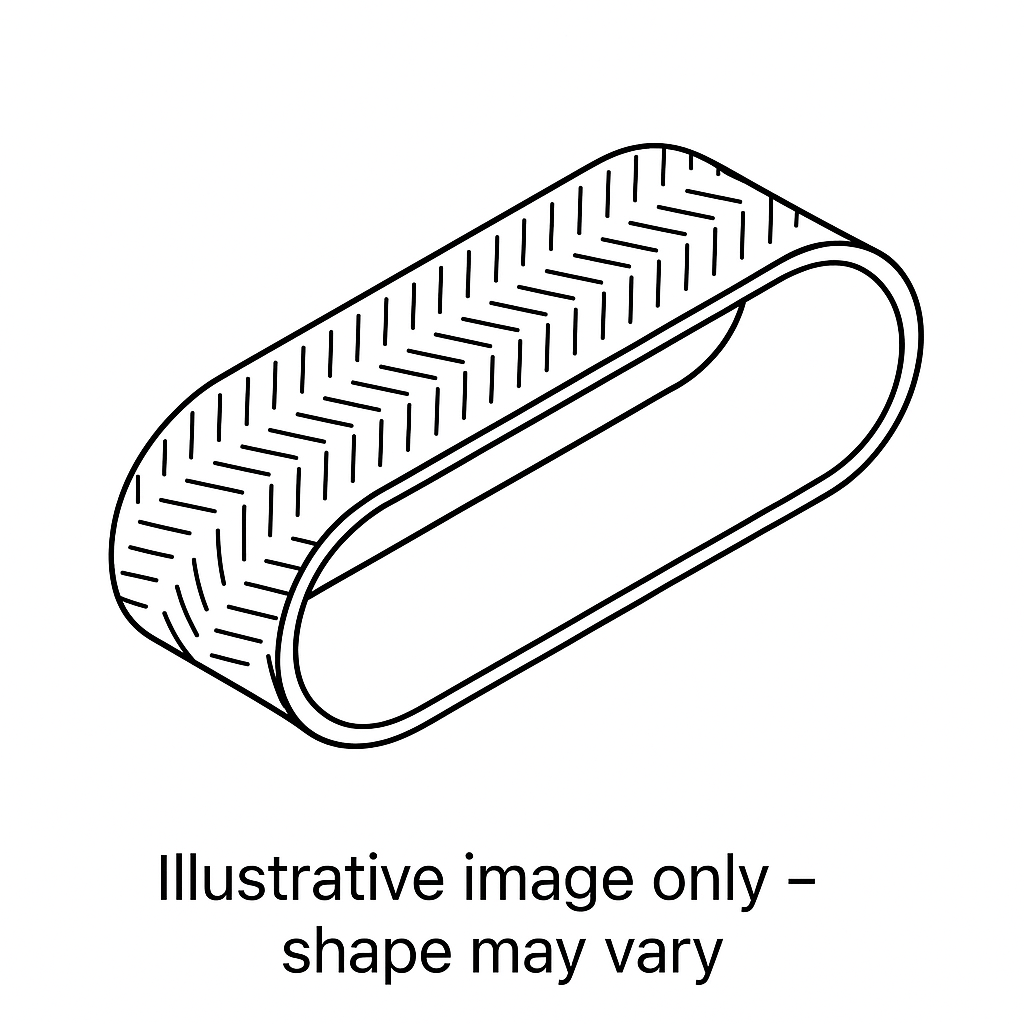

Purpose-built UV30B conveyor belt measuring 55 mm wide by 14 000 mm long, designed to move boards or mouldings steadily through heavy-duty woodworking machines without scuffing the work surface.
Key features
-
UV30B rough-top surface grips timber yet releases cleanly
-
55 mm width fits standard in-feed and out-feed roller beds
-
14 000 mm endless length (pre-joined) for fast installation
-
High-strength polyester traction layer resists stretch and moisture
-
Heat- and resin-resistant cover compound extends service life
Specifications
-
Part number: 2579B
-
Belt type: UV30B rough-top conveyor
-
Width: 55 mm
-
Length: 14 000 mm (endless)
-
Construction: PVC/NBR cover with polyester carcass
-
Operating temp: –10 °C … +90 °C
-
Tensile strength: ≥ 2 500 N / 50 mm
-
Colour: green cover, white underside
-
Typical use: in-feed/out-feed conveyors, return runs on moulders & rip-saws
Keeps timber moving smoothly through your woodworking-machinery line—reducing downtime and protecting finished surfaces during high-capacity woodworking-tooling operations.
