Description

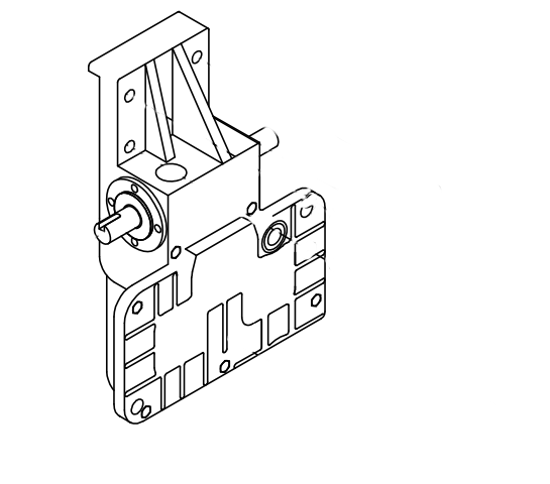

This replacement gearbox (0239B) converts high-speed motor input into controlled, torque-rich output—ideal wherever the machine manual specifies Type 55-2T. The sealed housing ships pre-filled with gear oil, so installation is a quick bolt-up and shaft-coupling procedure.
Key features
-
Fixed 1 : 15 reduction ratio for repeatable, slow-speed output
-
Type 55-2T casting footprint—drops straight into the original mount
-
Precision-machined gears in a rigid iron housing for low vibration
-
Dual lubrication ports (2-T) for easy oil change or level check
-
Output shaft and bolt pattern match OEM drawing—no shimming required
Specifications
| Item | Value |
|---|---|
| Part number | 0239B |
| Gearbox type | 55-2T |
| Reduction ratio | 1 : 15 (input : output) |
| Mounting style | Four-bolt base flange (match OEM) |
| Lubrication | Factory-filled; re-oil per service plan |
| Input / output bores | OEM dimensions for this code |
A robust reduction unit that keeps critical woodworking-machinery drives running smoothly, ensuring consistent throughput and accurate woodworking-tooling results.
