Description

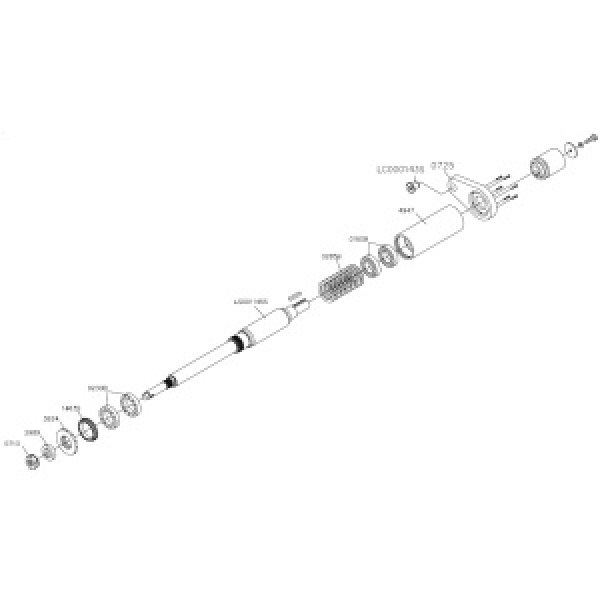

This spindle (0614LS) drops into the existing horizontal bearing seats and provides a true, vibration-free drive for the cutter block. Match the bore, keyway and draw-bolt details to your original shaft before installation.
Key features
-
Ø50 mm bearing journals for precise drop-in fit
-
115 mm cutter-seating section accommodates single or stacked heads
-
Overall body length approximately 9 inches – confirm against removed spindle
-
Supplied lightly oiled and capped to prevent transit corrosion
-
All interface details (keyway, threads, retaining groove) must be verified on your machine drawing
Specifications
| Item | Value |
|---|---|
| Part number | 0614LS |
| Spindle orientation | Horizontal |
| Journal diameter | 50 mm |
| Cutter-seating length | 115 mm |
| Approx. overall length | ≈ 9 in. (check exact spec) |
| Additional interfaces | Verify keyway, threads & retaining hardware |
A straight, rigid spindle that drives the cutter block accurately, ensuring the blades deliver clean woodworking-tooling results on every pass.
