Description

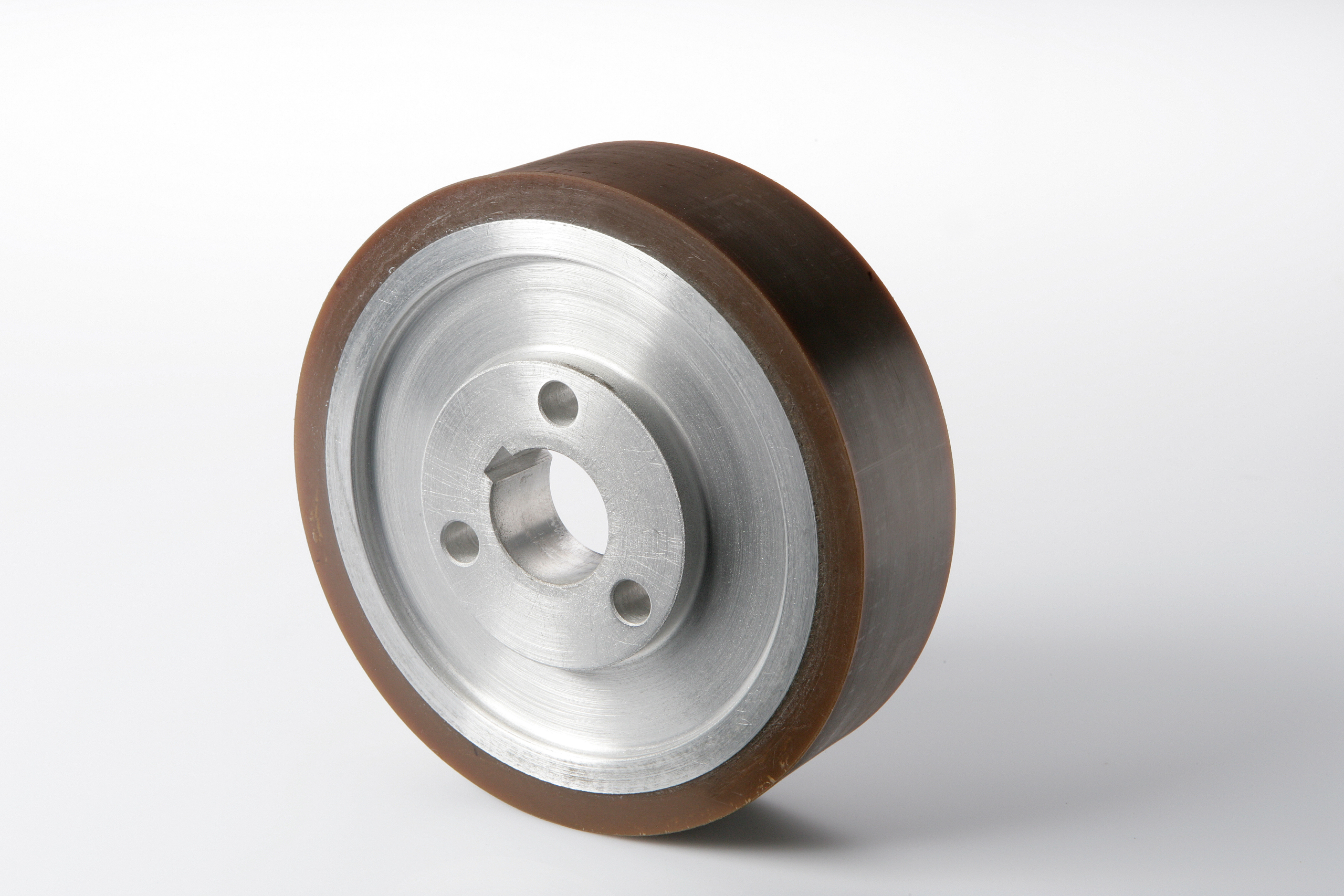

The Weinig 170-15-3V Feed Roller is built with an aluminium kernel and rubberized in brown 70±5 ShA rubber, offering excellent grip, wear resistance, and smooth, non-marking timber feed. Its compact 15mm rubber width makes it perfect for precision applications on a variety of Weinig moulders.

Looking for alternatives? We offer roller refurbishment services and the option to apply custom rubber compounds—just send us an enquiry.

Also available:

• Weinig 170-20-35-10 (Item Nr. 111-0088)

---

Technical Specifications:

• Kernel Diameter (D): 150 mm

• Final Diameter with Rubber (D1): 170 mm

• Kernel Length (L): 19.50 mm

• Rubber Length (L1): 15 mm

• Bore (ƒå): 35 mm

• Keyway Width (U): 10 mm

• Fixing Screw Hole Centres Diameter (TK): 60 mm

• Item Number: 111-0087

• Gross Weight: 0.75 kg



View our complete feed rollers range.
