Description

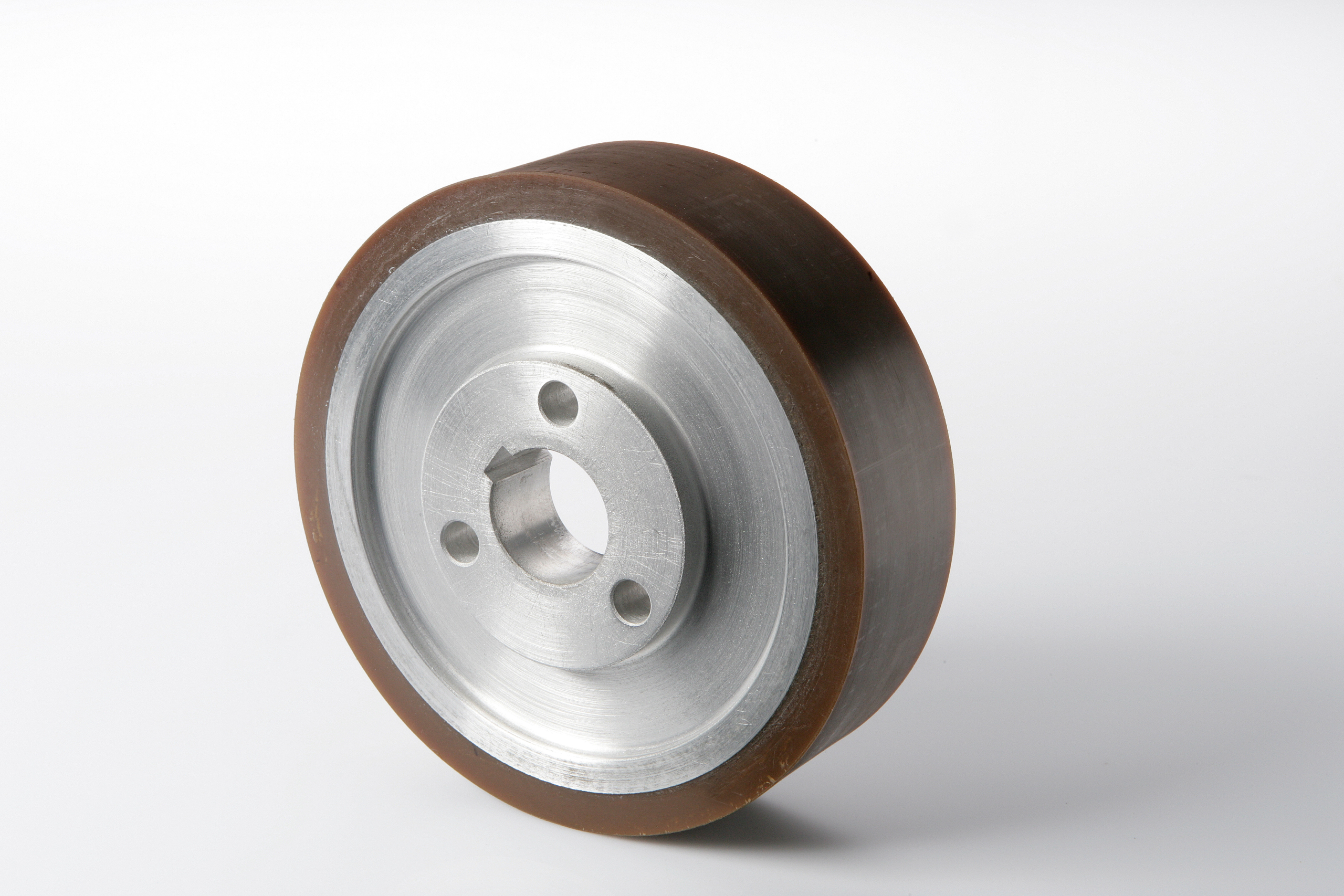

The Weinig 170-50-3V Feed Roller features a robust aluminium kernel rubberized with brown 70±5 ShA rubber. Known for its excellent grip, wear resistance, and clean feeding performance, this roller is ideal for installation in a range of Weinig moulders.
We also offer cost-effective roller refurbishment and the option to use alternate rubber compounds upon request—just send us an enquiry.
Also available:
-
Weinig 170-50-35-10 (Item Nr. 111-0091)
-
Weinig 140-50-35-10 Brown (Item Nr. 111-0074)
-
Weinig 140-50-35-10 Grey (Item Nr. 111-0178)
-
Weinig 140-50-35-10 White (Item Nr. 111-0073)
Technical Specifications:
-
Kernel Diameter (D): 150 mm
-
Final Diameter with Rubber (D1): 170 mm
-
Kernel Length (L): 54.50 mm
-
Rubber Length (L1): 50 mm
-
Bore (Č): 35 mm
-
Keyway Width (U): 10 mm
-
Fixing Screw Hole Centres Diameter (TK): 60 mm
-
Item Number: 111-0092
-
Gross Weight: 1.55 kg
