Weinig 170x35x35Steel Roller | 10mm Keyway | Leadermac UK

Description

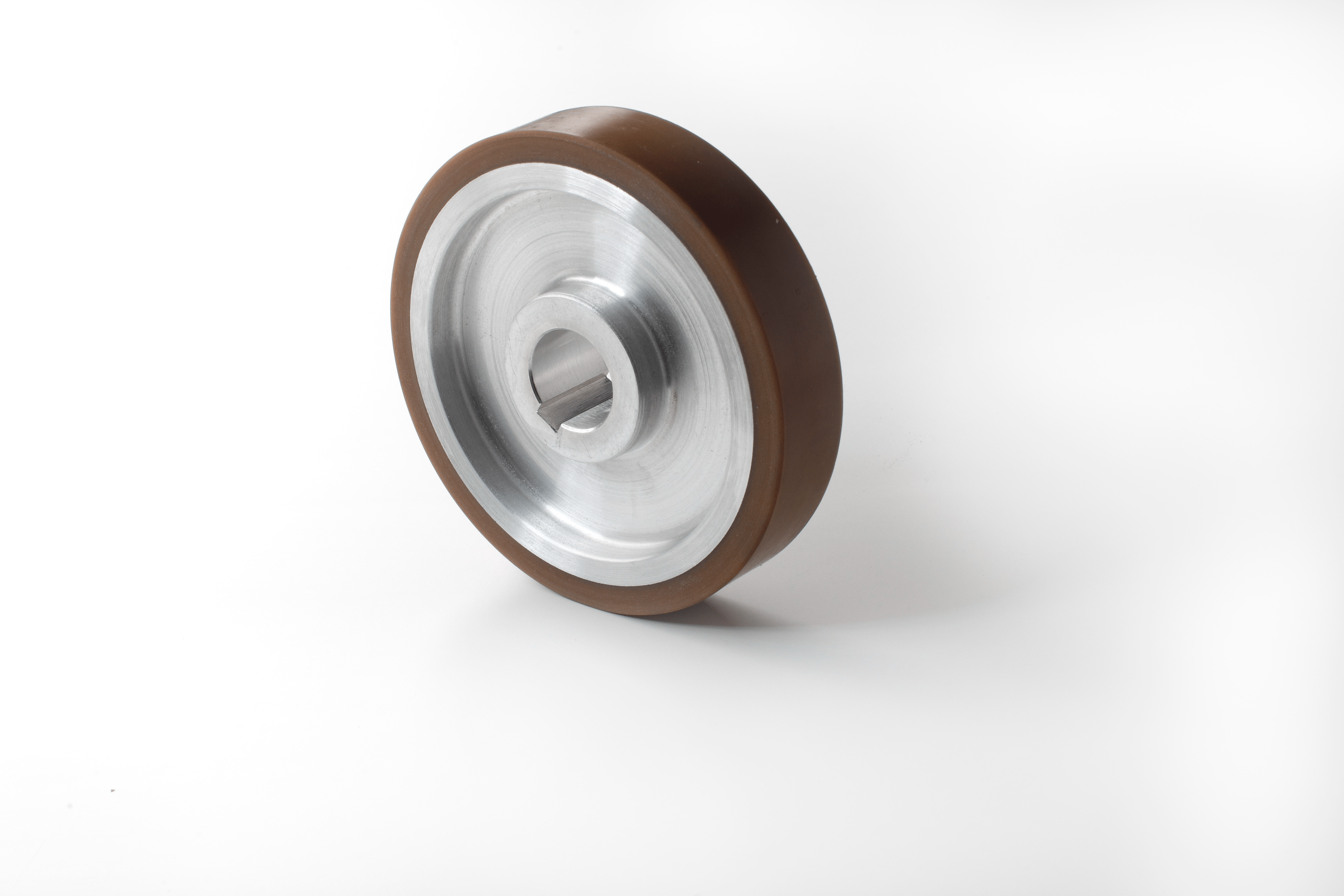

The Weinig 170-35-35 Feed Roller is constructed with a lightweight aluminium core and rubberized in brown 70±5 ShA rubber. This roller provides excellent grip, high wear resistance, and a non-marking feed, making it ideal for a range of Weinig moulders. Its 35mm rubber width offers a perfect balance between precision and contact area.

We also offer roller refurbishment and custom rubberization—get in touch for more details.

Also available:

• Weinig 170-50-35-10-3V (Item Nr. 111-0092)

---

Technical Specifications:

• Kernel Diameter (D): 150 mm

• Final Diameter with Rubber (D1): 170 mm

• Kernel Length (L): 38 mm

• Rubber Length (L1): 35 mm

• Bore (ƒå): 35 mm

• Keyway Width (U): 10 mm

• Fixing Screw Hole Centres Diameter (TK): N/A

• Item Number: 111-0090

• Gross Weight: 1.40 kg



View our complete feed rollers range.
