Weinig 170x50x35 Steel Roller | 10mm Keyway | Leadermac UK

Description

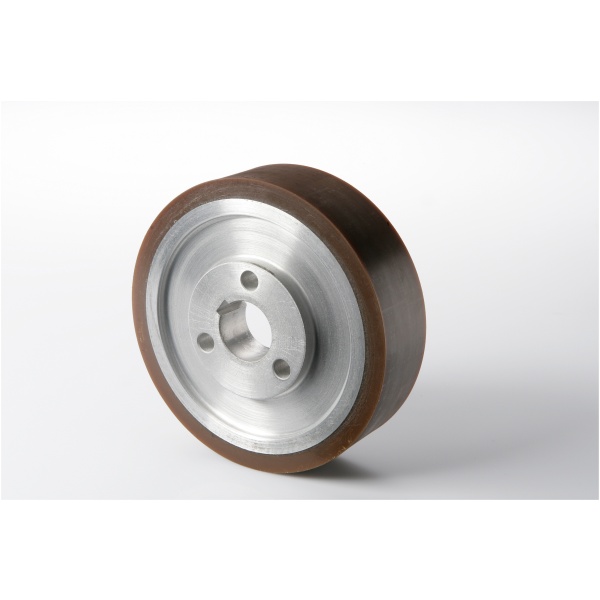

The Weinig 170-50-35 Feed Roller is built with a lightweight aluminium kernel and coated in brown 70±5 ShA rubber for reliable grip, high wear resistance, and non-marking feeding performance. Ideal for use in Weinig moulders, this roller is designed for precision, durability, and seamless operation in demanding production environments.

Looking to save on cost? We offer a roller refurbishment service or the option to apply alternate rubber compounds—just send us an enquiry.

Also available:

• Weinig 170-50-35-10-3V (Item Nr. 111-0092)

• Weinig 140-50-35-10 Brown (Item Nr. 111-0074)

• Weinig 140-50-35-10 Grey (Item Nr. 111-0178)

• Weinig 140-50-35-10 White (Item Nr. 111-0073)

---

Technical Specifications:

• Kernel Diameter (D): 150 mm

• Final Diameter with Rubber (D1): 170 mm

• Kernel Length (L): 53 mm

• Rubber Length (L1): 50 mm

• Bore (ƒå): 35 mm

• Keyway Width (U): 10 mm

• Fixing Screw Hole Centres Diameter (TK): N/A

• Item Number: 111-0091

• Gross Weight: 1.85 kg
