Weinig 170x20x35 Steel Roller | 10mm Keyway | Leadermac UK

Description

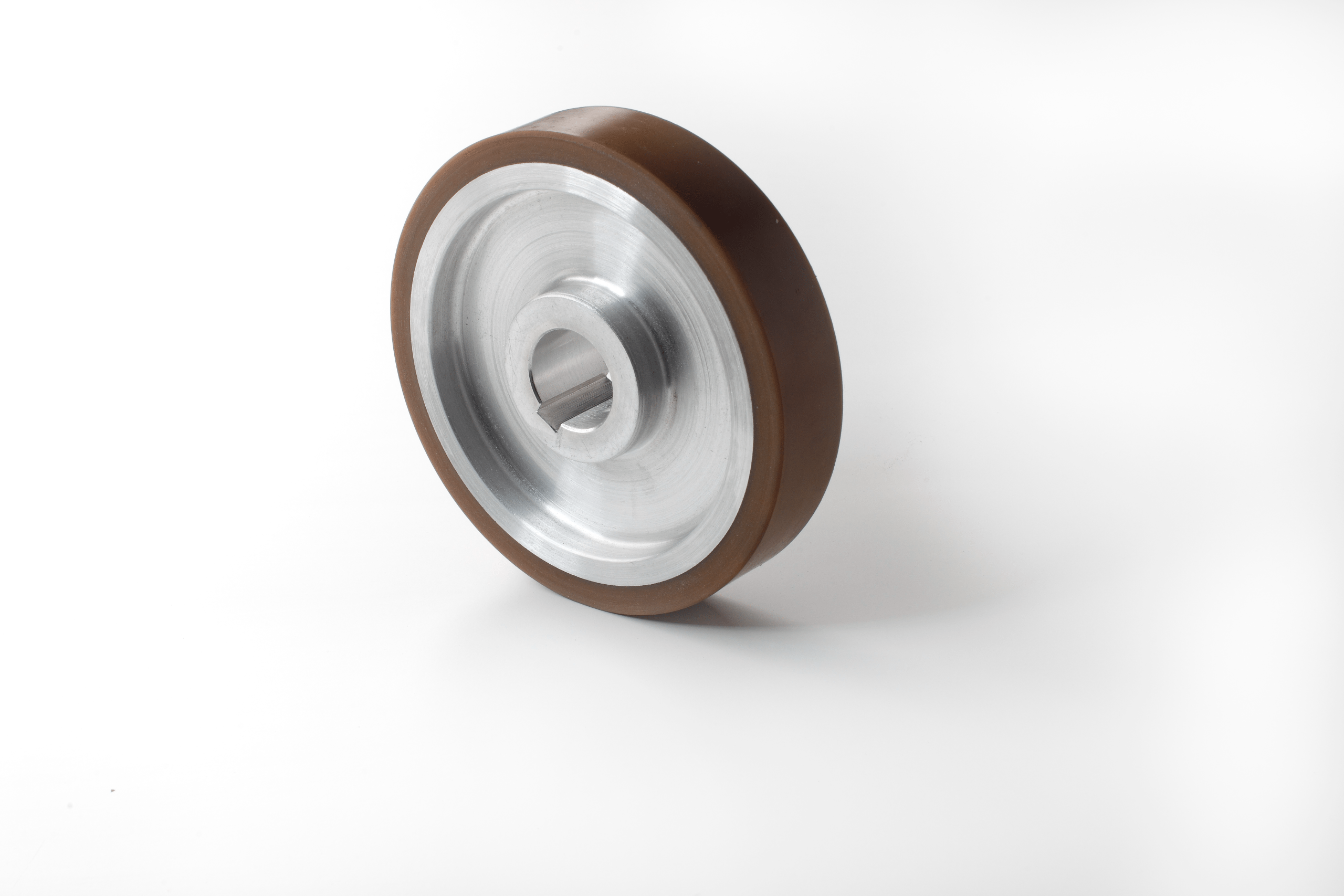

The Weinig 170-20-35 Feed Roller is designed with a precision-engineered aluminium kernel and rubberized in brown 70±5 ShA rubber. It provides excellent grip, is wear-resistant, and ensures non-marking contact with timber. Compact and reliable, this roller is compatible with a wide range of Weinig moulders and suited for fine feed control applications.

We also offer roller refurbishment and the option to apply alternative rubber compounds upon request—just send us an enquiry.

Also available:

• Weinig 170-50-35-10-3V (Item Nr. 111-0092)

• Weinig 140-19-30-3V (Item Nr. 111-0052)

• Weinig 140-22-30-3V (Item Nr. 111-0058)

---

Technical Specifications:

• Kernel Diameter (D): 150 mm

• Final Diameter with Rubber (D1): 170 mm

• Kernel Length (L): 23 mm

• Rubber Length (L1): 20 mm

• Bore (ƒå): 35 mm

• Keyway Width (U): 10 mm

• Fixing Screw Hole Centres Diameter (TK): N/A

• Item Number: 111-0088

• Gross Weight: 0.90 kg



View our complete feed rollers range.
